Victron Orion-TR 360W Isolated DC-DC Converter, 12-24V
$201.45
MSRP:
$237.00
Victron Orion-TR 10A Isolated DC-DC Converter, 12-24V
- UPC:
- 8719076035244
- MPN:
- ORI122424110
- Condition:
- New
- Availability:
- In Stock
- Shipping:
- $5.95 Flat Rate (Per Order)
$113.90
MSRP:
$134.00
Fast shipping from Georgia
Ships within 1 business day
Trusted by 28,000+ customers
Established Since 2001
30-day hassle-free returns
Description

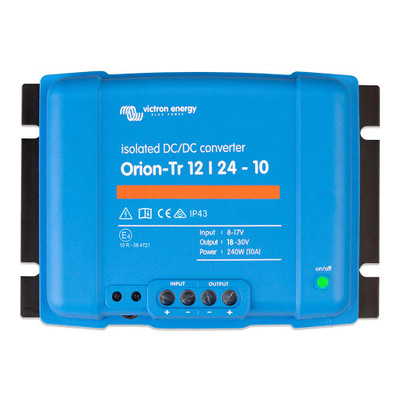

The Victron Orion-TR 12/24-10A Isolated DC-DC Converter steps 12V up to a regulated 24V output, at 10A continuous with adjustable voltage.
Ten amps of 24V output draws roughly 20 amps from the 12V side, since stepping up doubles the input current. That is what sizes the supply cable and fuse, and planning from the output figure alone will undersize both.
The adjustable output lets the 24V supply be matched to what the connected equipment expects. It also compensates for voltage drop along a long output run, setting the converter slightly high so the load sees the correct figure.
Around 240W is available at 40°C, with more at lower ambient temperature. The 40°C rating is the one to plan around in a machinery space, and galvanic isolation separates the input and output circuits. Explore more DC-DC converters and power supplies.
- 10A out draws around 20A from the 12V side
- Stepping up doubles the input current
- Plan the cable and fuse from the input figure
- Adjustable output compensates for cable drop
Specifications
- Amperage:
- 10A
- Product Type:
- DC-DC Converter
- Voltage:
- 24V
- Google Feed:
- Yes
- Bing Feed:
- Yes
- Pinterest Feed:
- Yes
- Feed Brand:
- Victron
- Feed MPN:
- ORI122424110
- Feed GTIN:
- 8719076035244
Description
The Victron Orion-TR 12/24-10A Isolated DC-DC Converter steps 12V up to a regulated 24V output, at 10A continuous with adjustable voltage.
Ten amps of 24V output draws roughly 20 amps from the 12V side, since stepping up doubles the input current. That is what sizes the supply cable and fuse, and planning from the output figure alone will undersize both.
The adjustable output lets the 24V supply be matched to what the connected equipment expects. It also compensates for voltage drop along a long output run, setting the converter slightly high so the load sees the correct figure.
Around 240W is available at 40°C, with more at lower ambient temperature. The 40°C rating is the one to plan around in a machinery space, and galvanic isolation separates the input and output circuits. Explore more DC-DC converters and power supplies.
- 10A out draws around 20A from the 12V side
- Stepping up doubles the input current
- Plan the cable and fuse from the input figure
- Adjustable output compensates for cable drop
Specifications
- Amperage:
- 10A
- Product Type:
- DC-DC Converter
- Voltage:
- 24V
- Google Feed:
- Yes
- Bing Feed:
- Yes
- Pinterest Feed:
- Yes
- Feed Brand:
- Victron
- Feed MPN:
- ORI122424110
- Feed GTIN:
- 8719076035244
Specifications
Amperage, Product Type, Voltage, Google Feed, Bing Feed, Pinterest Feed, Feed Brand, Feed MPN, Feed GTIN,
Specifications
- Amperage:
- 10A
- Product Type:
- DC-DC Converter
- Voltage:
- 24V
- Google Feed:
- Yes
- Bing Feed:
- Yes
- Pinterest Feed:
- Yes
- Feed Brand:
- Victron
- Feed MPN:
- ORI122424110
- Feed GTIN:
- 8719076035244
Our customers love it
Review this ProductBe the first to write a review.
Related Products
Victron Orion-TR 16A Isolated DC-DC Converter, 48-24V
$201.45
MSRP:
$237.00

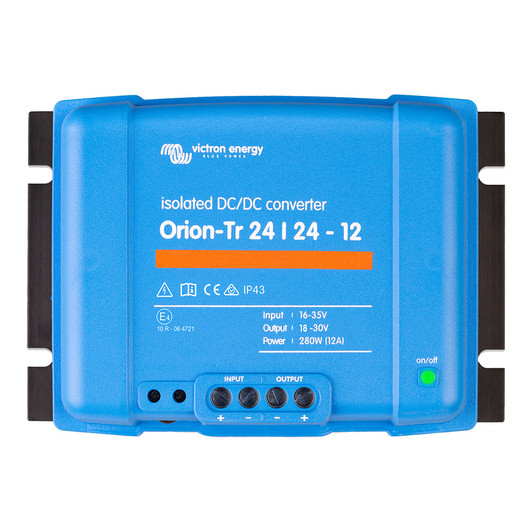

Victron Orion-TR 280W Isolated DC-DC Converter, 24-24V
