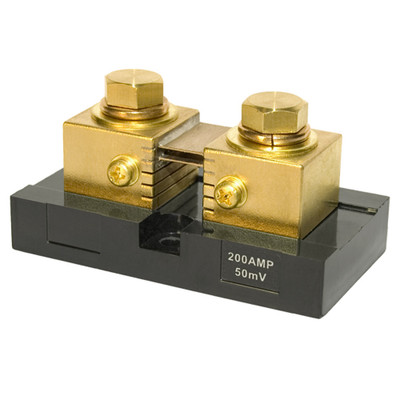

Blue Sea 9233 Analog Meter Shunt - 200A/50mV

The Blue Sea Systems 9233 is a 200A analog meter shunt with a 50mV output, for compatible DC ammeter installations.

Blue Sea's guidance on continuous use is worth following: a shunt run continuously should not exceed about two-thirds of its rated current. So a 200A shunt suits a circuit that normally sees up to around 130 amps. Sizing it to the peak instead leaves no margin and the measurement drifts as the shunt heats.

The shunt takes the high current and develops a small proportional voltage that the ammeter reads. That lets the display sit at the helm or panel while the shunt stays in the heavy-current part of the system, so no large cable ever reaches the gauge.

The 50mV output is the reference the matching ammeters expect, and mismatching shunt output to meter will give readings that are wrong rather than absent. Checking that figure against the meter is the step to take before ordering. Explore more marine electrical meters.

• Run continuously at about two-thirds of rating
• A 200A shunt suits roughly 130 amps in normal use
• Heavy cable never reaches the gauge
• 50mV output must match the meter's expectation
