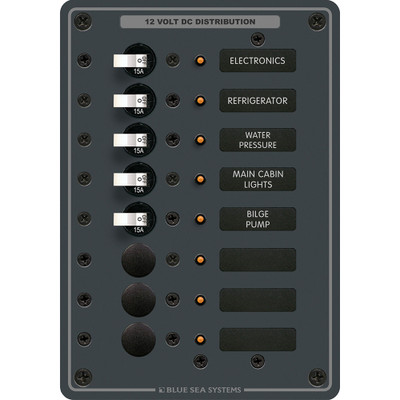

Blue Sea 8023 DC 8 Position Circuit Breaker Panel

The Blue Sea Systems 8023 is an 8-position DC panel with white toggle switches, running 12 or 24 volts to a maximum of 100A.

Five 15A breakers are installed across eight positions, leaving three open for whatever gets wired in over the following seasons. Toggles rather than flat rockers give tactile feedback and stand proud of the face, which suits a panel checked by feel in a dark cabin.

Versions fitted with analog meters can be taken up to 24 volts later using the 8240 or 8243 meters, and metered panels read across as many as three battery banks. That keeps the panel through a change of system voltage rather than replacing it.

The panel measures 7.5 inches tall by 5.25 wide, with positive, negative and grounding buses installed and fully pre-wired. Circuit label positions are backlit as standard with ON indicating LEDs in all positions, and the 8030 basic DC label set with 30 labels is included. Explore more marine electrical panels.

• Five breakers fitted, three positions open
• Toggles readable by feel in a dark cabin
• Analog meters convert to 24V later
• Reads up to three banks on metered versions
