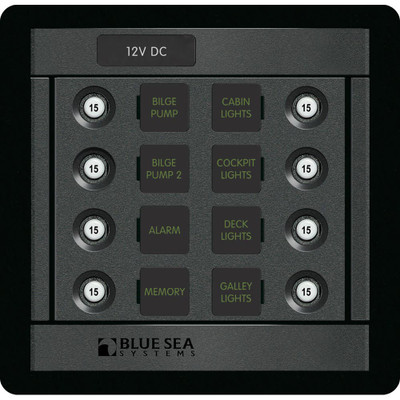

Blue Sea 1450 DC 8 Position CLB Breaker Panel

The Blue Sea Systems 1450 is an 8-position DC panel in the CLB square format, fitting eight circuits into a 4.75 by 4.88 inch face.

Eight 7056 push button reset-only breakers rated 15 amps do the protecting, and reset-only is the specification that decides whether this suits a boat. There is no switching function. These are protection that can be reset after a fault, not on-off controls, so anything needing to be switched needs a switch elsewhere.

That makes it a good fit for always-live circuits and for loads switched at the equipment itself rather than at the panel. It also allows eight circuits in a face under five inches square, which a panel with switching hardware could not manage.

Maximum amperage is 90A subject to wire and fusing being correctly sized for the application. Depth is 3.50 inches at 1.25 pounds, running 12 or 24 volts DC, with the 4205 basic DC label kit and 30 black square labels included. Explore more marine electrical panels.

• Reset-only breakers with no switching function
• Loads needing a switch need one elsewhere
• Suits always-live circuits and equipment-switched loads
• Eight circuits in a face under five inches square
