Blue Sea 7476 200A C-Series Flat Circuit Breaker
$170.95
MSRP:
$239.99
Blue Sea 7475 150A C-Series Flat Circuit Breaker
- UPC:
- 632085074753
- MPN:
- 7475
- Condition:
- New
- Availability:
- In Stock
- Shipping:
- $5.95 Flat Rate (Per Order)
$170.95
MSRP:
$239.99
Fast shipping from Georgia
Ships within 1 business day
Trusted by 28,000+ customers
Established Since 2001
30-day hassle-free returns
Description
The Blue Sea Systems 7475 is a 150A C-Series flat circuit breaker usable single or double pole, rated to 80 volts DC.
At 150 amps it sits below the 200A version in the same family, suiting a mid-size inverter or thruster circuit. Sizing between the two comes from the load's startup surge rather than its running current, since a thruster draws far more getting going than it does once moving.
A colored actuator shows the off position clearly and the flat profile guards against accidental switching, which is the main reason to choose this style over a toggle on a heavy DC feed. Trip free means the breaker cannot be held closed while a fault current is flowing.
The magnetic hydraulic mechanism is rated for 10,000 switch cycles at full amperage and voltage. Maximum voltage is 80 volts DC, covering 12, 24 and 48 volt systems from one part. Explore more marine circuit breakers.
- 150A, below the 200A version in the family
- Size to startup surge, not running current
- Flat profile guards against accidental switching
- Trip free, rated 10,000 cycles
Specifications
- Amperage:
- 150A
- Circuit Breaker Type:
- Magnetic Hydraulic
- Maximum Voltage:
- 80V DC
- Product Type:
- Circuit Breaker
- Google Feed:
- Yes
- Bing Feed:
- Yes
- Pinterest Feed:
- Yes
- Feed Brand:
- Blue Sea
- Feed MPN:
- 7475
- Feed GTIN:
- 632085074753
Description
The Blue Sea Systems 7475 is a 150A C-Series flat circuit breaker usable single or double pole, rated to 80 volts DC.
At 150 amps it sits below the 200A version in the same family, suiting a mid-size inverter or thruster circuit. Sizing between the two comes from the load's startup surge rather than its running current, since a thruster draws far more getting going than it does once moving.
A colored actuator shows the off position clearly and the flat profile guards against accidental switching, which is the main reason to choose this style over a toggle on a heavy DC feed. Trip free means the breaker cannot be held closed while a fault current is flowing.
The magnetic hydraulic mechanism is rated for 10,000 switch cycles at full amperage and voltage. Maximum voltage is 80 volts DC, covering 12, 24 and 48 volt systems from one part. Explore more marine circuit breakers.
- 150A, below the 200A version in the family
- Size to startup surge, not running current
- Flat profile guards against accidental switching
- Trip free, rated 10,000 cycles
Specifications
- Amperage:
- 150A
- Circuit Breaker Type:
- Magnetic Hydraulic
- Maximum Voltage:
- 80V DC
- Product Type:
- Circuit Breaker
- Google Feed:
- Yes
- Bing Feed:
- Yes
- Pinterest Feed:
- Yes
- Feed Brand:
- Blue Sea
- Feed MPN:
- 7475
- Feed GTIN:
- 632085074753
Specifications
Amperage, Circuit Breaker Type, Maximum Voltage, Product Type, Google Feed, Bing Feed, Pinterest Feed, Feed Brand, Feed MPN, Feed GTIN,
Specifications
- Amperage:
- 150A
- Circuit Breaker Type:
- Magnetic Hydraulic
- Maximum Voltage:
- 80V DC
- Product Type:
- Circuit Breaker
- Google Feed:
- Yes
- Bing Feed:
- Yes
- Pinterest Feed:
- Yes
- Feed Brand:
- Blue Sea
- Feed MPN:
- 7475
- Feed GTIN:
- 632085074753
Our customers love it
Review this ProductBe the first to write a review.
Related Products
Blue Sea 7048 150A 187-Series Panel Mount Breaker
$93.95
MSRP:
$125.99
Blue Sea 7148 150A 187-Series Surface Mount Breaker
$93.95
MSRP:
$125.99
Blue Sea 3104 C-Series ELCI Main Circuit Breaker - 50A
$557.95
MSRP:
$803.99

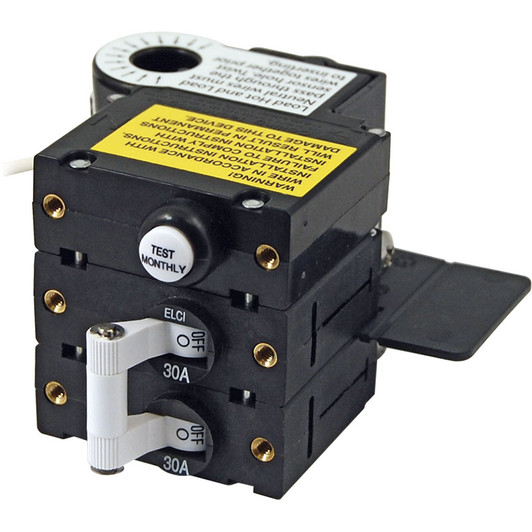

Blue Sea A-Series ELCI 30A Toggle Circuit Breaker
