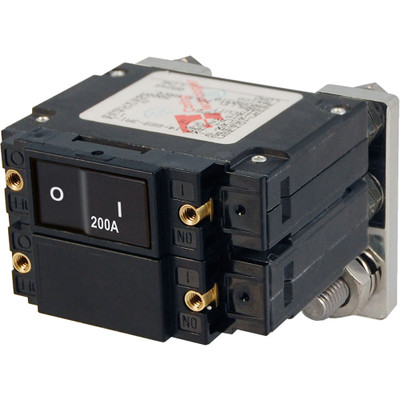

Blue Sea 7476 200A C-Series Flat Circuit Breaker

The Blue Sea Systems 7476 is a 200A C-Series flat circuit breaker for single or double pole use, rated to 80 volts DC.

The flat actuator is a deliberate choice for high current DC circuits. It sits close to the panel and resists being switched by accident. On a breaker feeding a thruster or an inverter, an unintended trip matters at exactly the wrong moment, and a toggle standing proud of the face is easy to catch with a sleeve or a bag.

The actuator changes color to show the off position, so state reads at a glance rather than needing to be felt. That compensates for the flat profile, which is otherwise harder to read than a toggle's position.

The magnetic hydraulic mechanism is trip free and cannot be held on during a fault current condition. It is rated for 10,000 switch cycles at full amperage and voltage, with a maximum of 80 volts DC covering 12, 24 and 48 volt systems. Explore more marine circuit breakers.

• Flat actuator resists accidental switching
• A toggle is easy to catch with a sleeve or bag
• Color change shows the off position at a glance
• 200A, trip free, rated 10,000 cycles
