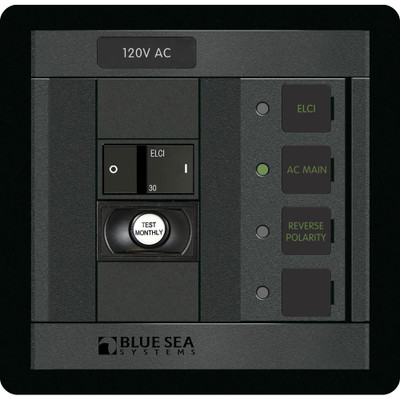

Blue Sea 1502 ELCI Main 30A Double Pole Panel

(0) Write a Review
UPC 632085015022
Availability In Stock
UPC:
632085015022
MPN:
1502
Condition:
New
Availability:
In Stock
Shipping:
$5.95 Flat Rate (Per Order)
$524.95
MSRP: $805.99

Fast shipping from Georgia

Ships within 1 business day
Trusted by 28,000+ customers
Established Since 2001
30-day hassle-free returns
Condition:
New
Shipping:
$5.95 flat rate per order

Options

$524.95
MSRP: $805.99
Or
Secure checkout Protected payments

Description

The Blue Sea Systems 1502 is a single-position panel holding one 30A double-pole ELCI main, measuring 4.75 by 4.88 by 3.00 inches at 1.10 pounds.

This does one job. Where a boat already has a branch panel it is happy with and only needs leakage protection added at the inlet, this adds it without touching anything downstream. Retrofitting ELCI protection to an older boat usually means exactly that situation, and replacing a working branch panel to get it would be wasteful.

The breaker is the 3102100 A-Series double-pole 120V 30A unit, a residual current device tripping at 30 mA. That covers whole-boat overcurrent and leakage protection to ABYC E-11 from a box under five inches square.

A red reverse polarity LED is fitted, circuit label positions are backlit and ON indicating LEDs are installed. It should go within 10 feet of the shore power inlet, which is where ABYC E-11 requires the ELCI to sit. Explore more marine electrical panels.

  • ELCI protection only, with no branch circuits
  • Adds leakage protection without replacing a branch panel
  • The usual retrofit case on an older boat
  • 30 mA trip in a box under five inches square

Specifications

Amperage:
30A
Product Type:
Electrical Panel
Voltage:
120V AC
Google Feed:
Yes
Bing Feed:
Yes
Pinterest Feed:
Yes
Label 0:
marine
Feed Brand:
Blue Sea
Feed MPN:
1502
Feed GTIN:
632085015022

Description

The Blue Sea Systems 1502 is a single-position panel holding one 30A double-pole ELCI main, measuring 4.75 by 4.88 by 3.00 inches at 1.10 pounds.

This does one job. Where a boat already has a branch panel it is happy with and only needs leakage protection added at the inlet, this adds it without touching anything downstream. Retrofitting ELCI protection to an older boat usually means exactly that situation, and replacing a working branch panel to get it would be wasteful.

The breaker is the 3102100 A-Series double-pole 120V 30A unit, a residual current device tripping at 30 mA. That covers whole-boat overcurrent and leakage protection to ABYC E-11 from a box under five inches square.

A red reverse polarity LED is fitted, circuit label positions are backlit and ON indicating LEDs are installed. It should go within 10 feet of the shore power inlet, which is where ABYC E-11 requires the ELCI to sit. Explore more marine electrical panels.

  • ELCI protection only, with no branch circuits
  • Adds leakage protection without replacing a branch panel
  • The usual retrofit case on an older boat
  • 30 mA trip in a box under five inches square
