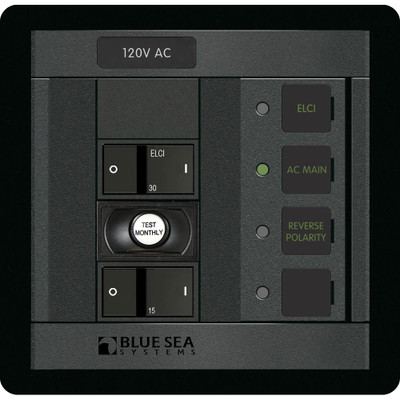

Blue Sea 1190 ELCI Main 30A Panel - 1 Position

The Blue Sea Systems 1190 is a 30A double-pole ELCI main with one 15A branch position, measuring 4.75 by 4.88 by 3.99 inches at one pound.

This is the smallest complete AC panel Blue Sea builds rather than a main breaker in a box, with one protected branch circuit alongside the ELCI. For a small boat running a single AC circuit, usually a charger, that is the whole AC system in one four-inch box.

The label backlighting behavior is worth understanding before fitting. Green LEDs light the labels whenever the panel is powered, regardless of individual switch positions. So the backlighting says the panel is live and the ON indicators say which circuits are running. Reading the backlighting as circuit status would be a mistake.

The main is the 3102100 A-Series double-pole 120V unit, a residual current breaker tripping at 30 mA for ABYC E-11 compliance. A 7403 A-Series flat rocker 15A breaker handles the branch circuit, a red reverse polarity LED sits on the face, and the 4206 AC label set is included. Explore more marine electrical panels.

• The smallest complete AC panel Blue Sea builds
• ELCI main plus one protected branch circuit
• Backlighting means powered, not switched on
• 30 mA leakage trip meeting ABYC E-11
