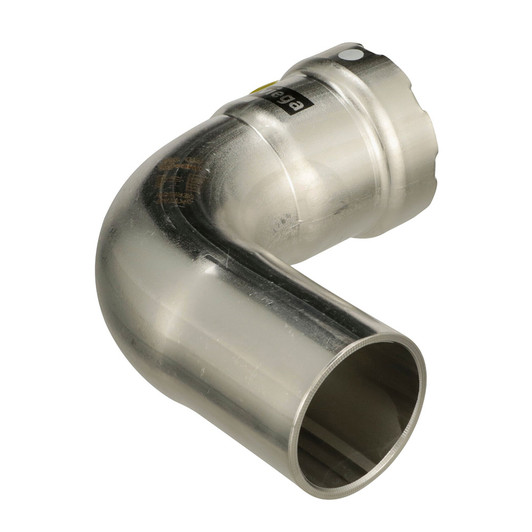

Viega MegaPress 316 1.25-Inch FKM 90-Degree Street Elbow

The Viega MegaPress 316 1.25-Inch FKM 90-Degree Street Elbow provides the larger pipe size of the two 90-degree fittings in this report. One end presses to the stainless line while the street end can seat directly into another fitting. This arrangement creates a right-angle change with fewer connection pieces than using two standard fittings and a short pipe section.

For a run that has to turn tightly, the 90-degree geometry concentrates the direction change into a compact area. MegaPress technology makes that transition with a press tool instead of threaded fabrication, welding or brazing. The no-flame process is especially useful where marine installations make hot-work control important.

The connection uses a grip ring, separator ring and FKM sealing element inside the press end. It works with Schedule 5 through Schedule 40 stainless pipe, and the 316 stainless body is selected for stronger corrosion resistance in salt air and salt water. Additional elbows and system components are available under marine pipe fittings.

• Larger-bore 90-degree option for direct right-angle routing.
• Street end connects into another fitting without a short nipple.
• 316 stainless construction supports corrosive marine environments.
• FKM seal provides resistance to oils and fuels.
