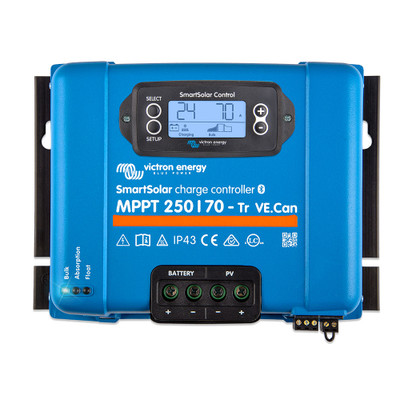

Victron SmartSolar MPPT 250/70-TR VE.Can Controller

(0) Write a Review
UPC 8719076051213
Availability In Stock
UPC:
8719076051213
MPN:
SCC125070421
Condition:
New
Availability:
In Stock
Shipping:
$5.95 Flat Rate (Per Order)
$536.35
MSRP: $631.00

Fast shipping from Georgia

Ships within 1 business day
Trusted by 28,000+ customers
Established Since 2001
30-day hassle-free returns
Condition:
New
Shipping:
$5.95 flat rate per order

Options

$536.35
MSRP: $631.00
Or
Secure checkout Protected payments

Description

The Victron SmartSolar MPPT 250/70-TR VE.Can is a 70A solar charge controller accepting up to 250V PV input, with TR screw terminals.

The TR designation refers to the terminals. Screw terminals give a conventional hard-wired connection for the PV and battery circuits, where other models in the range use different connection methods. That matters for an installation being wired in place rather than assembled on a bench, since screw terminals accept the cable directly without an intermediate connector.

A 250V PV ceiling allows more panels in series, which lowers current for the same power and permits considerably thinner cable across a long run. Natural cooling replaces a fan, so there is nothing mechanical to fail and no noise, at very high conversion efficiency.

VE.Can integrates the controller with compatible Victron components and synchronizes it with additional controllers in a larger installation. SafetyShield+ protection covers excessive temperature, short circuits and reverse polarity, and compatible GX equipment adds remote management through the Victron platform where internet access exists. Explore more solar charge controllers.

  • TR screw terminals for direct hard-wiring
  • 250V PV input allows thinner cable on long runs
  • Fanless natural cooling with nothing to fail
  • VE.Can synchronizes several controllers together

Specifications

Amperage:
70A
Charger Type:
MPPT Controller
Connectivity:
VE.Can/Bluetooth
Connector Type:
TR Terminals
Maximum PV Voltage:
250V
Product Type:
Solar Charge Controller

Description

The Victron SmartSolar MPPT 250/70-TR VE.Can is a 70A solar charge controller accepting up to 250V PV input, with TR screw terminals.

The TR designation refers to the terminals. Screw terminals give a conventional hard-wired connection for the PV and battery circuits, where other models in the range use different connection methods. That matters for an installation being wired in place rather than assembled on a bench, since screw terminals accept the cable directly without an intermediate connector.

A 250V PV ceiling allows more panels in series, which lowers current for the same power and permits considerably thinner cable across a long run. Natural cooling replaces a fan, so there is nothing mechanical to fail and no noise, at very high conversion efficiency.

VE.Can integrates the controller with compatible Victron components and synchronizes it with additional controllers in a larger installation. SafetyShield+ protection covers excessive temperature, short circuits and reverse polarity, and compatible GX equipment adds remote management through the Victron platform where internet access exists. Explore more solar charge controllers.

  • TR screw terminals for direct hard-wiring
  • 250V PV input allows thinner cable on long runs
  • Fanless natural cooling with nothing to fail
  • VE.Can synchronizes several controllers together

Specifications

Amperage:
70A
Charger Type:
MPPT Controller
Connectivity:
VE.Can/Bluetooth
Connector Type:
TR Terminals
Maximum PV Voltage:
250V
Product Type:
Solar Charge Controller

Specifications

Amperage, Charger Type, Connectivity, Connector Type, Maximum PV Voltage, Product Type,

Specifications

Amperage:
70A
Charger Type:
MPPT Controller
Connectivity:
VE.Can/Bluetooth
Connector Type:
TR Terminals
Maximum PV Voltage:
250V
Product Type:
Solar Charge Controller
