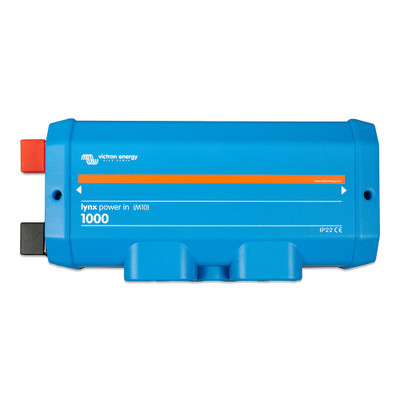

Victron Lynx Power-In with M10 Terminals

The Victron Lynx Power-In with M10 Terminals is a high-current entry point for batteries, chargers and loads in a Lynx distribution system.

The M10 designation refers to the busbar interconnection joints between Lynx modules, while individual cable connections remain M8. That is worth reading carefully, since M10 in the product name might suggest the cable lugs are M10 when they are not. Ordering M10 lugs for the cables would leave them unable to fit.

It combines positive and negative busbars in one module that clips to the rest of the Lynx system. Power-In is the entry point; the Distributor adds fused outputs and the Shunt adds monitoring, and they connect together as a run.

The modular layout means the system can be extended later without rebuilding what is already installed. That suits a boat where the electrical system grows over time rather than being finished in one go. Explore more bus bars and power distribution.

• M10 refers to the module joints, not the cable lugs
• Individual cable connections remain M8
• M10 lugs on the cables would not fit
• Power-In, Distributor and Shunt connect as a run
