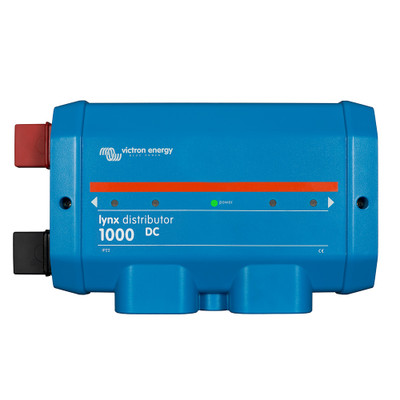

Victron Lynx Distributor with M10 Terminals

The Victron Lynx Distributor with M10 Terminals is a 1000A module with four MEGA-fused positive connections, four negative and fuse-status LEDs.

The four fuse-status LEDs are the practical feature, showing at a glance which circuit has blown. Without them a blown MEGA fuse means pulling and testing each one, which on a live DC system in a locker is both slow and awkward.

Four fused positive connections and four negative returns plus system ground handle a substantial distribution point. Building the equivalent from separate busbars and fuse holders means more terminations, more mounting and more to inspect.

MEGA fuses are the protection used, and each has to be sized for its own circuit rather than the module's rating. M10 terminals have to match the cable lugs, and the module clips into the Lynx system alongside the shunt and BMS components. Explore more power distribution and bus bars.

• Four LEDs show which fuse has blown
• Otherwise each one must be pulled and tested
• Four fused positives, four negatives, plus ground
• Size each MEGA fuse to its own circuit
