VDO Reed Switch 250MM Tank Depth Fuel Sender

(0) Write a Review
$46.95
Only 2 left in stock
Ships within 1 business day
Trusted by 28,000+ customers
Established Since 2001
30-day hassle-free returns
Condition: New
Shipping: $6.95 flat rate per order
UPC 754059064529
Availability In Stock
UPC:
754059064529
MPN:
226-625
Condition:
New
Availability:
In Stock
Shipping:
$6.95 Flat Rate (Per Order)
Options
$46.95
Or
Secure Checkout
Description
Specifications

Description

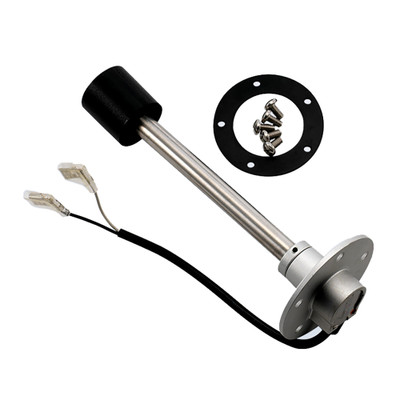

Choose the VDO Reed Switch Fuel Sender in the 250 mm length when the tank's required sender depth is 250 mm. Its compact vertical tube is particularly useful for a shallower installation where a longer probe cannot be accommodated. This stainless-steel model is manufacturer part 226-625 and does not require the lateral clearance of a conventional swinging sender arm.

Before ordering, measure from the top mounting point toward the tank bottom and account for the manufacturer's recommended installation clearance. A 250 mm tube cannot simply be substituted for a deeper sender without affecting the usable fuel-level indication. The model is specified for 240–33 ohm instruments, so verify the gauge resistance range as well as the physical depth.

The tubular arrangement is designed to reduce level-reading movement caused by fuel sloshing inside the tank. Installation uses an SAE five-hole mounting pattern, with the supplied neoprene mounting gasket and hardware. An ethanol-resistant Viton gasket is also part of the described sender construction; inspect all seals and test gauge operation before placing the system back in service.

Product Documents

Specifications

Bing Feed:
Yes
Depth:
250mm
Google Feed:
Yes
Material:
Stainless Steel
Pinterest Feed:
Yes
Product Type:
Fuel Sender
Resistance:
240-33 Ohm
