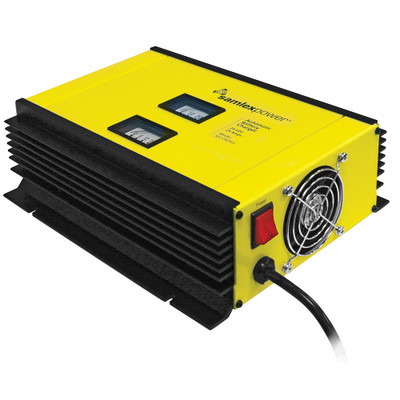

Samlex 25A 24V 2-Bank 3-Stage Battery Charger

The Samlex 25A Battery Charger is a fully automatic three-stage charger built for all types of 24 Volt lead-acid batteries, including Flooded, Absorbed Glass Mat (AGM), and Gel Cell. It runs off either a 120 VAC or 230 VAC source at 50/60 Hz and can charge up to 2 separate battery banks simultaneously without an isolator.

A DIP switch allows conversion to a two-stage algorithm for batteries connected to a DC load, and the unit can also serve as a standalone DC power supply. Built-in voltmeter and ammeter monitoring, fan cooling, and protection against overload, short-circuit, reverse polarity, and thermal overload keep charging safe, and the included temperature sensor prevents under or overcharging as conditions vary. Browse more in our battery chargers category.

Key Features: 25A output, 24V, 2-bank charging, 3-stage (2-stage selectable via DIP switch), user-configurable 120/230 VAC input, voltmeter and ammeter, fan cooled, includes temp sensor, UL-1564 listed, 2-year limited warranty.

Frequently Asked Questions

Can this charge two battery banks at once? Yes, it can charge up to 2 separate battery banks simultaneously without needing an isolator.

What does the DIP switch control? The DIP switch selects between 2-stage and 3-stage charging and allows configuration of the AC input voltage between 120 and 230 VAC.

How does this compare to the 12V 50A model? This charger (SEC-2425UL) outputs 25A at 24V, while the 50A version (SEC-1250UL) outputs 50A at 12V; both share the same features and protections.
