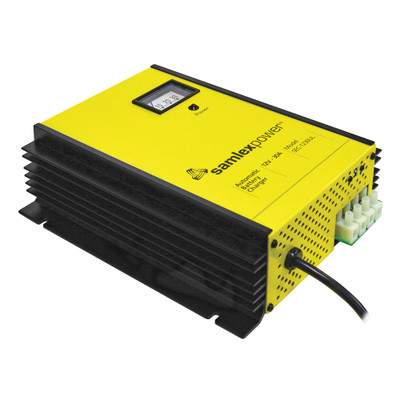

Samlex 30A 12V 3-Bank 3-Stage Battery Charger

The Samlex 30A Battery Charger is a fully automatic three-stage charger built for all types of 12 Volt lead-acid batteries, including Flooded, Absorbed Glass Mat (AGM), and Gel Cell. It runs off either a 120 VAC 60 Hz or 230 VAC 50 Hz source and can charge up to 3 separate battery banks simultaneously without an isolator.

A DIP switch allows conversion to a two-stage algorithm for batteries connected to a DC load, and the unit can also serve as a standalone DC power supply. A voltmeter, ammeter, and LED power status display support monitoring, while the Universal Protection Circuit guards against short circuit, overload, and reverse battery polarity. Browse more in our battery chargers category.

Key Features: 30A output, 12V, 3-bank charging, 3-stage (2-stage selectable via DIP switch), user-configurable 120/230 VAC input, voltmeter and ammeter, UPC protection circuit, UL-1564 listed, 2-year limited warranty.

Frequently Asked Questions

Can this charge multiple battery banks at once? Yes, it can charge up to 3 separate battery banks simultaneously without needing an isolator.

What does the DIP switch control? The DIP switch selects between 2-stage and 3-stage charging and allows configuration of the AC input voltage between 120 and 230 VAC.

How does this compare to the 50A 2-bank model? This charger (SEC-1230UL) outputs 30A across 3 banks, while the SEC-1250UL outputs 50A across 2 banks; both charge 12V lead-acid batteries with the same voltage/frequency flexibility.
