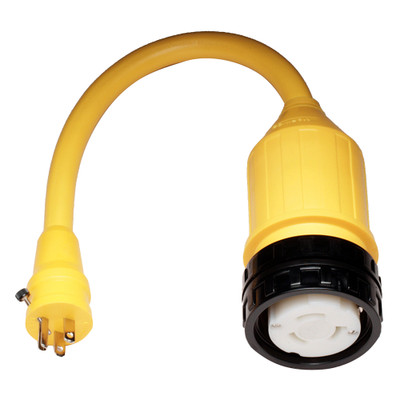

Marinco 115A 50A to 15A Shore Power Pigtail Adapter

The Marinco 115A Pigtail Adapter connects a 50A 125V locking boat inlet to a standard 15A 125V straight-blade dockside receptacle.

Fifteen amps is domestic household service, and this adapter exists for exactly that situation: a boat on a lift, in a yard or at a dock with nothing but an ordinary outlet. It suits battery charging, maintenance, lighting and light onboard loads. Air conditioning, water heaters and anything with a compressor will trip a 15A circuit immediately.

The adapter changes the connector configuration and nothing else. It does not turn a 15A source into a 50A supply, and the usable power stays limited by the dockside circuit. Loads have to be kept inside that limit deliberately, since the boat's own breakers are sized for far more.

The boat-side female connector uses the sealing collar system, and the dockside male plug is a straight-blade fitting with a locking screw. Covers and sealing hardware are supplied where required, and it is rated for wet-location use. Explore more shore power adapters.

• 50A boat inlet onto an ordinary 15A household outlet
• For charging, maintenance and light loads only
• Air conditioning will trip a 15A circuit immediately
• Changes the connector, not the available power
