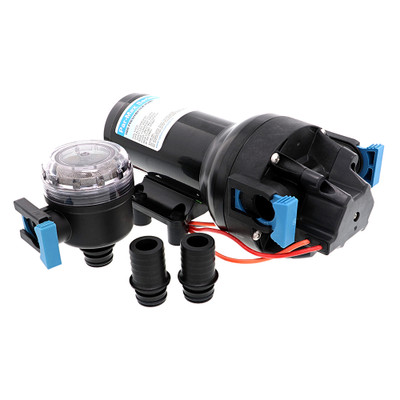

Jabsco Par-Max HD6 12V 6-GPM 60-PSI Water Pump

The Jabsco Par-Max HD6 12V Water Pump (part P601J-218S-3A) moves about 6 gallons per minute and shuts off at 60 psi. It combines the top Par-Max flow rate with the higher pressure setting. That makes it suited to large yachts with multiple heads, a galley, and deck showers.

The sealed pressure switch and integrated bypass module work together to keep flow steady as demand changes. Quick-connect ports make it easy to remove the pump for service or winter storage. A co-molded diaphragm resists wear over many hours of operation. Its brushed permanent magnet motor is fully enclosed to keep moisture out.

Confirm that the plumbing, fittings, and water heater are all rated for 60 psi. Use wire sized for the higher current and the run length. For winter layup, drain the system or run non-toxic potable antifreeze through the pump. The 40 psi HD6 and other pumps are in our fresh water and washdown pumps.

• 12V, about 6 GPM at 60 psi
• Top flow with higher pressure
• Quick-connect ports
• Co-molded diaphragm
