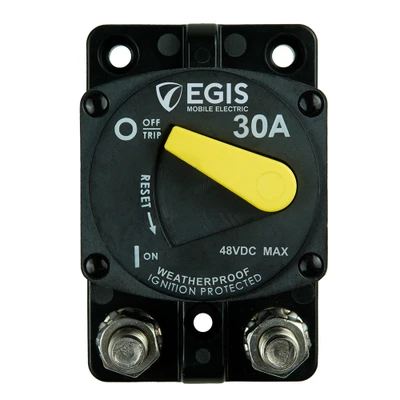

EGIS 30A 87 Series Surface-Mount Circuit Breaker

For a compact breaker that can be installed close to the source or load, the EGIS 30A 87 Series Surface-Mount Circuit Breaker provides automatic fault protection plus manual ON/OFF control. It is intended for DC electrical systems where heavy battery fault current and harsh environmental exposure both need to be considered.

Across 12V, 24V, 36V, and 48VDC systems, the 87 Series provides a sealed and ignition-protected protection point. Its interrupt performance is designed to meet newer ABYC E-11 requirements, making it appropriate for circuits exposed to the high fault-current potential of large battery banks.

The surface base incorporates reinforced mounting points, and the electrical terminals use stainless hardware with self-locking nuts. Those details help the breaker hold up to vibration and corrosion while keeping the protection device close to the battery or load.

• Sealed and ignition-protected construction supports demanding DC electrical spaces
• Interrupt performance is designed for high available battery fault current
• Corrosion-resistant terminal hardware is used at the high-current connections
• Reinforced mounting provisions improve installation security
• The breaker doubles as a local service disconnect
