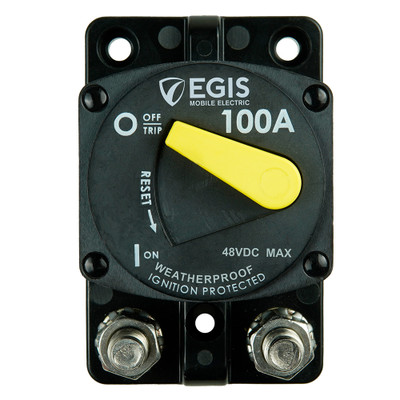

EGIS 100A 87 Series Surface-Mount Circuit Breaker

Rated at 100A continuous, the EGIS 87 Series Surface-Mount Circuit Breaker combines automatic fault protection with manual circuit isolation. The reinforced base allows the breaker to be placed close to the source or equipment being protected, avoiding the need for a separate control-panel cutout.

System compatibility extends up to 48VDC, and the IP66 enclosure protects the mechanism from dust and water. EGIS specifies 2,000 switching cycles at full current. Fault interruption is rated at 5,000A at 14VDC and 3,000A at 28VDC, providing the capacity needed for demanding battery-fed electrical systems.

The mounting base is reinforced for vibration-prone installations, and the terminals use stainless hardware with serrated flange nuts for connection security. High-contrast controls provide a quick status check. High-temperature materials are used in the housing, and the USA-made breaker includes a 4-year EGIS warranty.

• Automatic over-current protection is combined with manual circuit isolation
• Full-current switching endurance is rated at 2,000 cycles
• High interrupt capability is intended for substantial battery-bank fault current
• Serrated flange nuts help maintain secure terminal connections
• Backed by a 4-year EGIS manufacturer warranty
