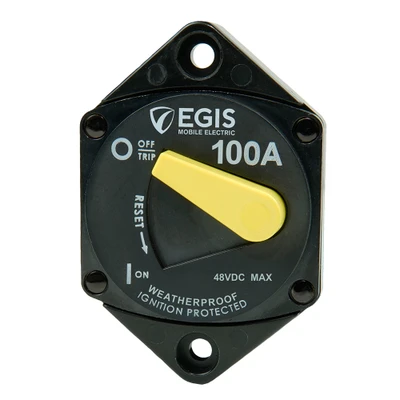

EGIS 100A 87 Series Panel-Mount Circuit Breaker

The EGIS 100A 87 Series Panel-Mount Circuit Breaker combines automatic over-current protection with a manual ON/OFF disconnect in one compact breaker. Rated at 100A continuous, it protects wiring from short circuits and overloads that can overheat insulation while also giving the installer a convenient way to isolate the circuit for service or maintenance.

The breaker is sealed to IP66 against dust and water intrusion and is rated for systems up to 48VDC, covering common 12V and 24V installations as well as 36V and 48V applications. It is designed for 2,000 full-current switching cycles and can interrupt up to 5,000A at 14VDC or 3,000A at 28VDC, making it suitable for circuits connected to large battery banks with substantial available fault current. The circular panel-mount design fits a round cutout for a clean control-panel installation.

High-visibility ON/OFF controls make breaker status easy to see at a glance. The circular mounting format simplifies panel installation, while stainless steel hardware and serrated flange nuts resist corrosion and vibration. The housing and materials are selected for high-temperature installation locations, and the breaker is made in the USA from high-quality components. EGIS includes a 4-year manufacturer warranty.

• 100A continuous-current rating with manual circuit isolation
• 48VDC maximum rating supports 12V, 24V, 36V, and 48V systems
• 5,000A interrupt rating at 14VDC and 3,000A at 28VDC
• IP66 sealed construction for dust and water resistance
• Round panel-mount format for a clean control-panel installation
