Bluewater 22mm Double Momentary Switch, 4-Ft Lead
- MPN:
- 9059-2123-4
- Condition:
- New
- Availability:
- In Stock
- Shipping:
- $5.95 Flat Rate (Per Order)
Fast shipping from Georgia
Description

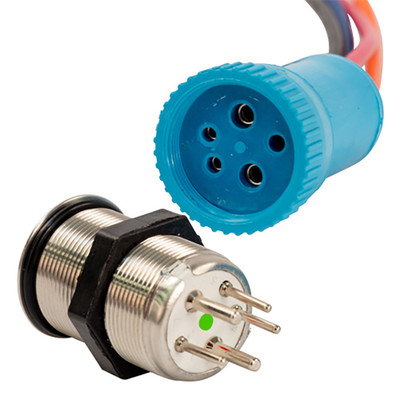

The Bluewater 22mm Double Momentary Push Button Switch gives two momentary ON functions from one control, rated IP69K.
Off-(On)-(On) means both ON positions are momentary, which suits anything that must stop when the button is released. Trim tabs and lifts are the obvious cases: up and down from one switch, with both directions stopping the instant pressure comes off. A latching switch on either direction would run the actuator to its limit.
The LED ring is blue when off, green at the first momentary position and red at the second. That distinction is what tells the operator which direction is engaged, since a push button has no lever position to read.
A stainless-steel-plated body and included gasket give an IP69K rating against high-pressure water jets. Twenty-two millimeters is the mounting hole size, with a 4-foot lead supplied. Explore more marine electrical switches.
- Both ON positions momentary, for up and down
- Trim tabs and lifts stop when pressure comes off
- A latching switch would run the actuator to its limit
- Green and red show which direction is engaged
Specifications
- Amperage:
- 20A
- Cycle Life:
- 50,000
- Lead Length:
- 4 ft
- LED Color:
- Blue/Green/Red
- Product Type:
- Electrical Switch
- Size:
- 22 mm
- Switch Action:
- Off/(On)/(On) Double Momentary
- Voltage:
- 12-24V
- Water Resistance:
- IP69K
- Google Feed:
- Yes
- Bing Feed:
- Yes
- Pinterest Feed:
- Yes
- Feed Brand:
- Bluewater
- Feed MPN:
- 9059-2123-4
