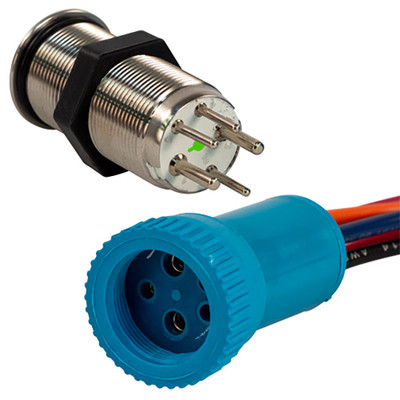

Bluewater 19mm Double Momentary Switch, 4-Ft Lead
- MPN:
- 9057-2123-4
- Condition:
- New
- Availability:
- In Stock
- Shipping:
- $5.95 Flat Rate (Per Order)
Fast shipping from Georgia
Description
The Bluewater 19mm Double Momentary Push Button Switch gives two momentary ON functions in the smaller format, rated IP69K.
Off-(On)-(On) puts both directions of a trim device, a lift or an actuator on one small switch. Both positions release when pressure comes off, which is what a directional actuator needs. Anything latching would drive it to its end stop and hold it there.

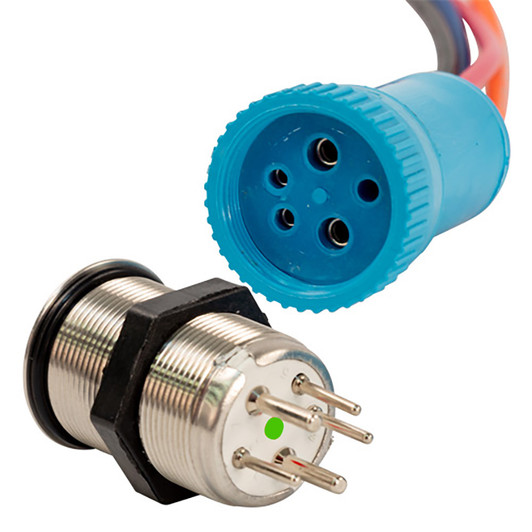

Nineteen millimeters fits where the 22mm version will not, which on a small console or a tight switch row is often the deciding factor. Both sizes carry the same contact arrangement and the same IP69K rating, so the choice is purely about panel space.
The LED ring is blue when off, green at the first momentary position and red at the second. A stainless-steel-plated body with the included gasket gives the IP69K rating, and a 4-foot lead is supplied. Explore more marine electrical switches.
- Both directions momentary on one small switch
- Latching would drive an actuator to its end stop
- 19mm fits where 22mm will not
- Same contacts and rating: the choice is space
Specifications
- Amperage:
- 15A
- Cycle Life:
- 50,000
- Lead Length:
- 4 ft
- LED Color:
- Blue/Green/Red
- Product Type:
- Electrical Switch
- Size:
- 19 mm
- Switch Action:
- Off/(On)/(On) Double Momentary
- Voltage:
- 12-24V
- Water Resistance:
- IP69K
- Google Feed:
- Yes
- Bing Feed:
- Yes
- Pinterest Feed:
- Yes
- Feed Brand:
- Bluewater
- Feed MPN:
- 9057-2123-4
Description
The Bluewater 19mm Double Momentary Push Button Switch gives two momentary ON functions in the smaller format, rated IP69K.
Off-(On)-(On) puts both directions of a trim device, a lift or an actuator on one small switch. Both positions release when pressure comes off, which is what a directional actuator needs. Anything latching would drive it to its end stop and hold it there.
Nineteen millimeters fits where the 22mm version will not, which on a small console or a tight switch row is often the deciding factor. Both sizes carry the same contact arrangement and the same IP69K rating, so the choice is purely about panel space.
The LED ring is blue when off, green at the first momentary position and red at the second. A stainless-steel-plated body with the included gasket gives the IP69K rating, and a 4-foot lead is supplied. Explore more marine electrical switches.
- Both directions momentary on one small switch
- Latching would drive an actuator to its end stop
- 19mm fits where 22mm will not
- Same contacts and rating: the choice is space
