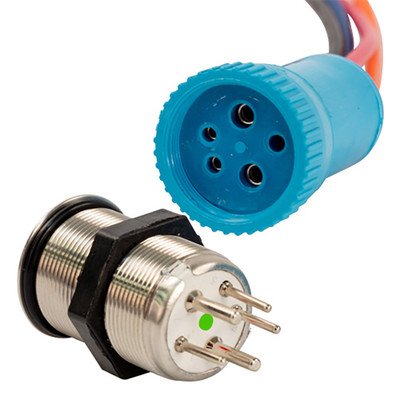

Bluewater 22mm Double Momentary Switch, 1-Ft Lead
- MPN:
- 9059-2123-1
- Condition:
- New
- Availability:
- In Stock
- Shipping:
- $5.95 Flat Rate (Per Order)
Fast shipping from Georgia
Description
The Bluewater 22mm Double Momentary Push Button Switch has a 1-foot lead, with two momentary ON functions, rated IP69K.
Two momentary positions from one switch covers both directions of a trim device, a lift or an actuator. Each releases the moment pressure comes off, which is what a directional actuator needs. Fitting latching switches to the same job leaves it driving to its end stop with nobody holding anything.
The 1-foot lead suits a switch mounted close to its terminal block, with a 4-foot version for a longer run. Matching the lead to the distance avoids a splice behind the dashboard, which is where a corroded joint sits unnoticed for years.
The LED ring is blue when off, green at the first momentary position and red at the second. A stainless-steel-plated body with the included gasket gives an IP69K rating in a 22mm mounting hole. Explore more marine electrical switches.
- Both directions momentary from one switch
- Each releases the moment pressure comes off
- Latching would drive it to the end stop unattended
- 1-foot lead, with a 4-foot version available
Specifications
- Amperage:
- 20A
- Cycle Life:
- 50,000
- Lead Length:
- 1 ft
- LED Color:
- Blue/Green/Red
- Product Type:
- Electrical Switch
- Size:
- 22 mm
- Switch Action:
- Off/(On)/(On) Double Momentary
- Voltage:
- 12-24V
- Water Resistance:
- IP69K
- Google Feed:
- Yes
- Bing Feed:
- Yes
- Pinterest Feed:
- Yes
- Feed Brand:
- Bluewater
- Feed MPN:
- 9059-2123-1
Description
The Bluewater 22mm Double Momentary Push Button Switch has a 1-foot lead, with two momentary ON functions, rated IP69K.
Two momentary positions from one switch covers both directions of a trim device, a lift or an actuator. Each releases the moment pressure comes off, which is what a directional actuator needs. Fitting latching switches to the same job leaves it driving to its end stop with nobody holding anything.
The 1-foot lead suits a switch mounted close to its terminal block, with a 4-foot version for a longer run. Matching the lead to the distance avoids a splice behind the dashboard, which is where a corroded joint sits unnoticed for years.
The LED ring is blue when off, green at the first momentary position and red at the second. A stainless-steel-plated body with the included gasket gives an IP69K rating in a 22mm mounting hole. Explore more marine electrical switches.
- Both directions momentary from one switch
- Each releases the moment pressure comes off
- Latching would drive it to the end stop unattended
- 1-foot lead, with a 4-foot version available
