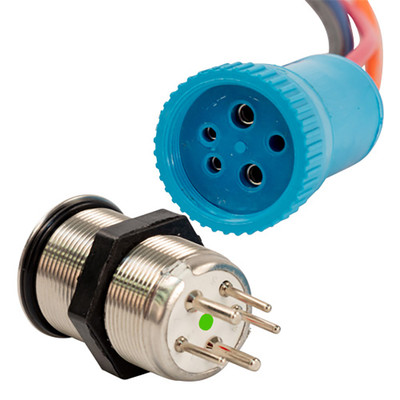

Bluewater 22mm Momentary Push Button Switch, 1-Ft Lead
- MPN:
- 9059-2113-1
- Condition:
- New
- Availability:
- In Stock
- Shipping:
- $5.95 Flat Rate (Per Order)
Fast shipping from Georgia
Description
The Bluewater 22mm Momentary Push Button Switch has a 1-foot lead, staying active only while pressed, rated IP69K.
Momentary means the circuit is live only under the finger, which is what a horn, a lift or an actuator needs. Fitting a latching switch to any of those leaves the function running until someone presses again, and on a windlass or an actuator that is a genuine hazard rather than an inconvenience.
The 1-foot lead suits a switch mounted close to its terminal block, with a 4-foot version for longer runs. Choosing the right length avoids adding a splice behind the dashboard, where a joint is hard to reach and easy to forget.
The switch is backlit blue when off and changes to red when activated, confirming the contact has made. A stainless-steel-plated body with the included gasket gives an IP69K rating in a 22mm mounting hole. Explore more marine electrical switches.
- Live only under the finger
- A latching switch on a windlass is a hazard
- 1-foot lead for a switch beside its terminal block
- Red confirms the contact has made
Specifications
- Amperage:
- 20A
- Cycle Life:
- 50,000
- Lead Length:
- 1 ft
- LED Color:
- Blue/Red
- Product Type:
- Electrical Switch
- Size:
- 22 mm
- Switch Action:
- Off/(On) Momentary
- Voltage:
- 12-24V
- Water Resistance:
- IP69K
- Google Feed:
- Yes
- Bing Feed:
- Yes
- Pinterest Feed:
- Yes
- Feed Brand:
- Bluewater
- Feed MPN:
- 9059-2113-1
