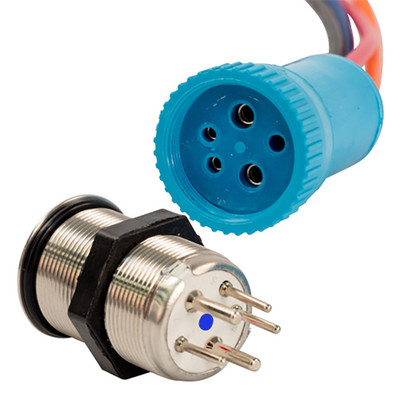

Bluewater 22mm Off/On/On Push Button Switch, 1-Ft Lead
- MPN:
- 9059-3113-1
- Condition:
- New
- Availability:
- In Stock
- Shipping:
- $5.95 Flat Rate (Per Order)
Fast shipping from Georgia
Description
The Bluewater 22mm Off/On/On Push Button Switch has a 1-foot lead, with blue, green and red LED states, rated IP69K.
Off-On-On gives two selectable operating states from one switch, with the LED colors mapping to each. Blue off, green at the first ON, red at the second. Without that mapping a three-position push button is unreadable, since there is no lever to show which state is selected.
The 1-foot lead suits a switch close to its connection point, with a 4-foot version available where the run is longer. Getting the length right avoids splicing behind a panel, which is exactly where a corroded joint goes unnoticed for years.
The stainless-steel-plated metal body and included gasket give an IP69K rating against high-pressure water. Twenty-two millimeters is the mounting hole, with the same function available in 19mm for tighter panels. Explore more marine electrical switches.
- Two selectable states from one switch
- Colors map to positions a push button cannot show
- 1-foot lead, with a 4-foot version available
- Also made in 19mm for tighter panels
Specifications
- Amperage:
- 20A
- Cycle Life:
- 50,000
- Lead Length:
- 1 ft
- LED Color:
- Blue/Green/Red
- Product Type:
- Electrical Switch
- Size:
- 22 mm
- Switch Action:
- Off/On/On
- Voltage:
- 12-24V
- Water Resistance:
- IP69K
- Google Feed:
- Yes
- Bing Feed:
- Yes
- Pinterest Feed:
- Yes
- Feed Brand:
- Bluewater
- Feed MPN:
- 9059-3113-1
