Blue Sea 9630 AC Analog Ammeter - 0-50A Range

(0) Write a Review
UPC 632085096304
Availability In Stock
UPC:
632085096304
MPN:
9630
Condition:
New
Availability:
In Stock
Shipping:
$5.95 Flat Rate (Per Order)
$66.95
MSRP: $91.99
Only 3 left in stock

Fast shipping from Georgia

Ships within 1 business day
Trusted by 28,000+ customers
Established Since 2001
30-day hassle-free returns
Condition:
New
Shipping:
$5.95 flat rate per order

Options

$66.95
MSRP: $91.99
Or
Secure checkout Protected payments

Description

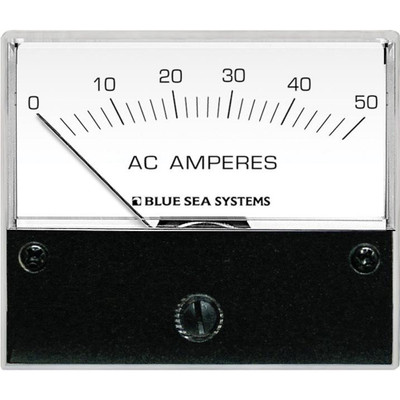

The Blue Sea Systems 9630 AC Analog Ammeter reads 0A to 50A on a 2-3/4 inch face, using an external clamp-on current transformer.

A 0 to 50A scale suits the common 30A and 50A marine AC services, where a 100A meter would leave the needle in the bottom third of its travel. Analog meters are read by needle position more than by the number behind it, so a scale matched to normal operation is what makes the display useful.

The transformer slips over the conductor being measured and senses current without the full load passing through the gauge. That keeps high-current AC conductors out of the instrument panel entirely, and means fitting the meter to an existing system does not involve cutting the main cable.

A simple two-wire connection supplies the meter from the transformer. The backlit face improves visibility at night and coordinates with other illuminated instruments in the panel. Explore more marine electrical meters.

  • 0-50A suits common 30A and 50A shore services
  • A 100A meter leaves the needle barely moving
  • Clamp-on transformer, no cable cut
  • High-current AC stays out of the panel
