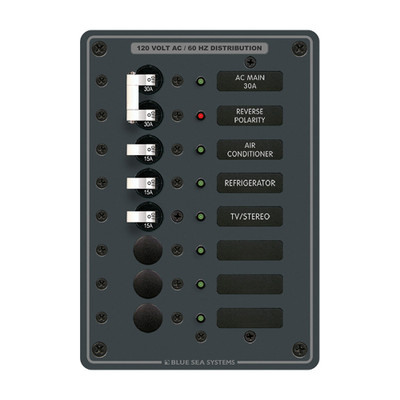

Blue Sea 8027 AC Main +6 Position Breaker Panel

The Blue Sea Systems 8027 is a 120V AC panel with a 30A double-pole main plus 6 positions, standing 7.5 inches tall by 5.25 wide.

It ships partially populated with three 15A branch breakers and the 30A main, leaving three positions open for circuits added later. That is a deliberate middle ground. Buying fully populated costs more up front for breakers that may never be used, while an empty panel means ordering everything separately.

The red LED is reverse polarity indication, and it does its work the moment the boat plugs into an unfamiliar pedestal rather than after something has gone wrong. Seven green 120V AC LEDs cover the circuit positions alongside it.

Hot, neutral and safety ground buses are installed and the panel arrives fully pre-wired. Circuit label positions are backlit as standard with no kit to buy, ON indicating LEDs are fitted in all positions, and the 8031 basic AC label set with 30 labels is included. Explore more marine electrical panels.

• Three of six branch positions filled from the factory
• A middle ground between empty and fully populated
• Reverse polarity LED works before anything goes wrong
• Pre-wired buses with backlit labels
