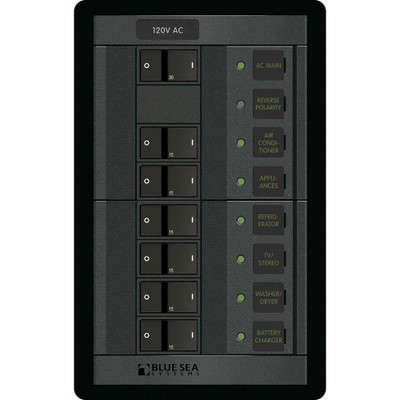

Blue Sea 1202 120V AC Main +6 Position Panel

The Blue Sea Systems 1202 is a 120V AC panel with a main plus 6 positions in vertical layout, 7.75 inches tall by 4.88 wide, rated to 100A.

The vertical format takes a narrow strip of bulkhead rather than a wide one, which is usually the space a boat actually has spare. At 4.88 inches wide it fits beside a companionway or in a locker where a conventional wide AC panel would need something else moved.

It arrives fully populated rather than part-filled. Six 7403 A-Series flat rocker 15A breakers cover the branches and a 7414 double-pole 30A breaker serves as the main. That means no additional breakers to order, which is worth checking on any panel purchase since a part-filled one can cost more once completed.

Circuit label positions are backlit and ON indicating LEDs are installed in all positions, keeping the panel readable in a dark cabin. The 4206 basic AC label kit with 30 black square labels is included, and the panel weighs 2.70 pounds at 3.00 inches deep. Explore more marine electrical panels.

• Vertical, taking a narrow strip of bulkhead
• Fully populated, with no extra breakers to order
• Six 15A branches and a 30A double-pole main
• Backlit labels and ON indicators throughout
