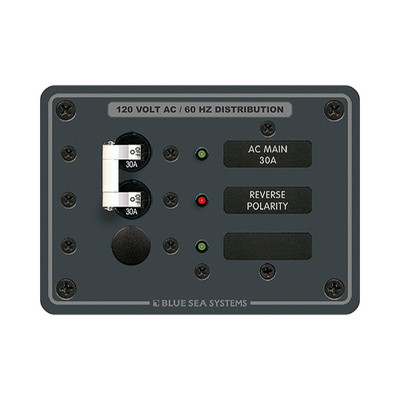

Blue Sea 8029 AC Main +1 Position Breaker Panel

The Blue Sea Systems 8029 is a 120V AC panel with a 30A double-pole main plus 1 position, measuring 3.75 by 5.25 inches.

One branch circuit behind a main is the smallest complete AC system a boat can have, the arrangement where shore power runs a battery charger and nothing else. Many boats never need more, and buying a six-position panel for one circuit means paying for empty positions and the space they take.

A 7238 A-Series white toggle double-pole 30A breaker serves as the main. Two green 120V AC LEDs and one red are installed, the red being reverse polarity indication so dock wiring can be checked before anything is energized.

Hot, neutral and safety ground buses are installed with the panel fully pre-wired. Circuit label positions are backlit as standard with no kit required, and ON indicating LEDs sit in all positions. Explore more marine electrical panels.

• Main plus one circuit, the smallest complete AC system
• For a boat whose shore power runs only a charger
• Reverse polarity LED before energizing
• Pre-wired buses with backlit labels
