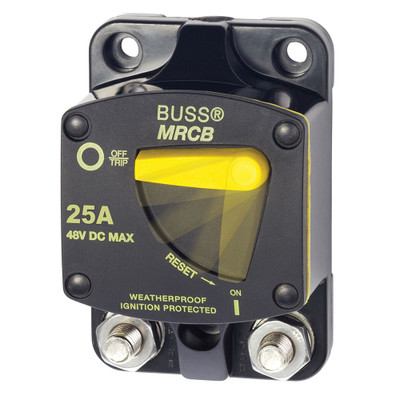

Blue Sea 7135 25A 187-Series Surface Mount Breaker

The Blue Sea Systems 7135 is a 25 amp surface mount breaker in the 187 Series, the smallest rating in the family, rated to 48 volts DC.

Twenty-five amps is the bottom of the range, for a circuit small enough that most installers would reach for a fuse. The argument for a breaker here is the reset. A fuse blown at sea needs a spare of the right rating found and fitted, where this needs a lever pushed back up once the cause is cleared.

Surface mounting fixes it to a bulkhead face with no cutout at all, which suits adding protection to an existing circuit without cutting into finished joinery. That makes it a practical retrofit part as much as a new-build one.

The thermal bi-metal element gives Type III protection with manual reset and trip free operation, so it cannot be held closed against a fault. Interrupt capacity is 5,000 amperes at 12 volts DC, 3,000 at 24 and 1,500 at 42. Waterproof, ignition protected to SAE J1171, with the lever showing trip status by orientation. Explore more marine circuit breakers.

• 25A, the smallest rating in the family
• A reset beats finding the right spare fuse at sea
• Surface mount needs no cutting into finished joinery
• A practical retrofit as much as a new-build part
