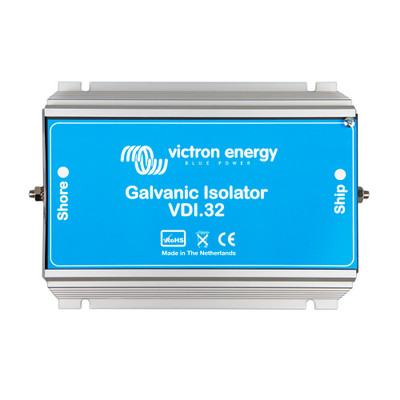

Victron Galvanic Isolator VDI-32A Waterproof

(0) Write a Review
Availability In Stock
MPN:
GDI000032000
Condition:
New
Availability:
In Stock
Shipping:
$5.95 Flat Rate (Per Order)
$249.05
MSRP: $293.00

Fast shipping from Georgia

Ships within 1 business day
Trusted by 28,000+ customers
Established Since 2001
30-day hassle-free returns
Condition:
New
Shipping:
$5.95 flat rate per order

Options

$249.05
MSRP: $293.00
Or
Secure checkout Protected payments

Description

The Victron Galvanic Isolator VDI-32A (32A Max, Waterproof/Potted) prevents electrolytic corrosion by blocking low voltage DC currents that enter the boat via the shore power earth wire. It is designed for boaters who want to protect underwater metals like the hull, propeller, and shaft from corrosion.

Internally, this isolator uses two diodes connected in anti-parallel fashion, allowing current in both directions but only above a threshold voltage of about 1.4VDC. Installed directly behind the boat's 120V-230V connection, the forward voltage prevents electrolytic current from flowing, while a higher error voltage in the AC circuit still allows the residual-current device to break the circuit as needed.

Marine electrical equipment performs best when connections stay clean, tight, dry where required, and properly supported. Inspect the finished installation and confirm normal operation before relying on the system at the dock or underway. For more compatible options, shop our battery charging accessories.

Key Features

  • Improve day-to-day operation: Waterproof potted housing holds up to constant marine exposure. This provides a practical operating, installation, or service benefit in its intended marine power application.
  • Make installation more practical: 6mm terminal posts handle higher-current shore power connections. This provides a practical operating, installation, or service benefit in its intended marine power application.
  • Support dependable marine use: Anti-parallel diode design blocks stray current while still passing the ground connection through for safety. This provides a practical operating, installation, or service benefit in its intended marine power application.

Frequently Asked Questions

What should I verify before installation?
Confirm battery-system voltage, AC output requirements, battery compatibility, wiring, circuit protection, ventilation, and mounting requirements for the specific unit.
Can this product be used with any battery system?
No. Follow the manufacturer's supported battery chemistries, voltage limits, and configuration requirements.
Should the equipment remain accessible?
Yes. Leave suitable access for wiring, indicators, ventilation, configuration, inspection, and service.

Specifications

Product Type:
Galvanic Isolator
Device Type:
Galvanic Isolator
Amperage:
32A
Certifications:
ABYC A-28

Description

The Victron Galvanic Isolator VDI-32A (32A Max, Waterproof/Potted) prevents electrolytic corrosion by blocking low voltage DC currents that enter the boat via the shore power earth wire. It is designed for boaters who want to protect underwater metals like the hull, propeller, and shaft from corrosion.

Internally, this isolator uses two diodes connected in anti-parallel fashion, allowing current in both directions but only above a threshold voltage of about 1.4VDC. Installed directly behind the boat's 120V-230V connection, the forward voltage prevents electrolytic current from flowing, while a higher error voltage in the AC circuit still allows the residual-current device to break the circuit as needed.

Marine electrical equipment performs best when connections stay clean, tight, dry where required, and properly supported. Inspect the finished installation and confirm normal operation before relying on the system at the dock or underway. For more compatible options, shop our battery charging accessories.

Key Features

  • Improve day-to-day operation: Waterproof potted housing holds up to constant marine exposure. This provides a practical operating, installation, or service benefit in its intended marine power application.
  • Make installation more practical: 6mm terminal posts handle higher-current shore power connections. This provides a practical operating, installation, or service benefit in its intended marine power application.
  • Support dependable marine use: Anti-parallel diode design blocks stray current while still passing the ground connection through for safety. This provides a practical operating, installation, or service benefit in its intended marine power application.

Frequently Asked Questions

What should I verify before installation?
Confirm battery-system voltage, AC output requirements, battery compatibility, wiring, circuit protection, ventilation, and mounting requirements for the specific unit.
Can this product be used with any battery system?
No. Follow the manufacturer's supported battery chemistries, voltage limits, and configuration requirements.
Should the equipment remain accessible?
Yes. Leave suitable access for wiring, indicators, ventilation, configuration, inspection, and service.

Specifications

Product Type:
Galvanic Isolator
Device Type:
Galvanic Isolator
Amperage:
32A
Certifications:
ABYC A-28

Specifications

Product Type, Device Type, Amperage, Certifications,

Specifications

Product Type:
Galvanic Isolator
Device Type:
Galvanic Isolator
Amperage:
32A
Certifications:
ABYC A-28
