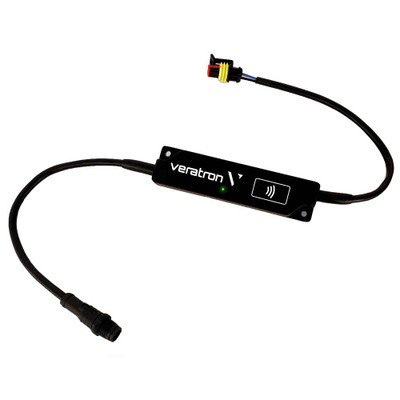

The Veratron LinkUp J1939 to NMEA 2000 Gateway is a single-sensor gateway built to bring a J1939-equipped engine sensor onto an NMEA 2000 network, upgrading older or non-NMEA-native vessel sensors without a full rewiring project.
Configuration is genuinely simple, done either through a companion wireless mobile app or over NMEA 2000 using Veratron's Configuration Tool, and the gateway requires no external power supply since it draws what it needs from the network itself. The waterproof sensor connection and explosion-proof housing meet ISO 8846:1990 compliance, meaning this gateway is rated for installation directly inside an engine compartment rather than needing to be mounted somewhere safer and less convenient.
A standard DeviceNet M12 plug interfaces cleanly with NMEA 2000 networks, and the gateway accepts SAE J1939 input signal on a 12V nominal supply. This compact footprint and simple mounting make the LinkUp Gateway a practical, low-hassle way to add one more sensor's data to a boat's digital network. Browse more marine instruments and gauges at CritPro.
Key Features: function: J1939 to NMEA 2000 Gateway, sensor inputs: 1, Single-Sensor, power requirement: None, No External Supply Needed, configuration: Wireless App or NMEA 2000 Tool, housing: Explosion-Proof, Engine Room Rated, connector: DeviceNet M12, input signal: SAE J1939, voltage: 12V.
Frequently Asked Questions
What voltage does it run on? 12V.
The Veratron LinkUp J1939 to NMEA 2000 Gateway is a single-sensor gateway built to bring a J1939-equipped engine sensor onto an NMEA 2000 network, upgrading older or non-NMEA-native vessel sensors without a full rewiring project.
Configuration is genuinely simple, done either through a companion wireless mobile app or over NMEA 2000 using Veratron's Configuration Tool, and the gateway requires no external power supply since it draws what it needs from the network itself. The waterproof sensor connection and explosion-proof housing meet ISO 8846:1990 compliance, meaning this gateway is rated for installation directly inside an engine compartment rather than needing to be mounted somewhere safer and less convenient.
A standard DeviceNet M12 plug interfaces cleanly with NMEA 2000 networks, and the gateway accepts SAE J1939 input signal on a 12V nominal supply. This compact footprint and simple mounting make the LinkUp Gateway a practical, low-hassle way to add one more sensor's data to a boat's digital network. Browse more marine instruments and gauges at CritPro.
Key Features: function: J1939 to NMEA 2000 Gateway, sensor inputs: 1, Single-Sensor, power requirement: None, No External Supply Needed, configuration: Wireless App or NMEA 2000 Tool, housing: Explosion-Proof, Engine Room Rated, connector: DeviceNet M12, input signal: SAE J1939, voltage: 12V.
Frequently Asked Questions
What voltage does it run on? 12V.
