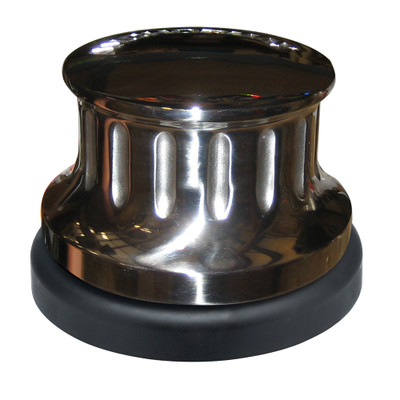

Maxwell AnchorMax 12V Windlass for Boats to 32 Feet

(0) Write a Review
UPC 1000000001853
Availability In Stock
UPC:
1000000001853
MPN:
ANCHORMAX
Condition:
New
Availability:
In Stock
Shipping:
$5.95 Flat Rate (Per Order)
$1,063.95
MSRP: $1,537.39
Fast shipping from Georgia
✓ Ships within 1 Business Day
✓ Trusted by 28,000+ customers
✓ Authorized Dealer
✓ 30 Day Hassle-Free Returns
Condition: New
Shipping: $5.95 Flat Rate (Per Order)

Options

$1,063.95
MSRP: $1,537.39
Or
✓Ships within 1 business day
✓Fast shipping from Georgia
✓Quality gear since 2001
✓Secure checkout

Description

Maxwell AnchorMax Windlass has an extremely high power-to-weight ratio, with a compact, fully sealed gearbox driven by a vertically mounted permanent magnet motor. It is designed for boats from 5m (16') to 10m (32'), minimizing intrusion below decks.

Fitting to the boat is simplicity itself, requiring no dismantling of the winch, with marine-grade alloy gear housings and a stainless steel drum. Supplied as a single direction (clockwise) unit complete with deck switch, fastenings, template, and fitting instructions — note it's not recommended for hauling halyards or chain directly. Browse more options in our anchoring & docking category.

Key Features: 12V, 600W, 386kg (850lb) max line pull, 24m/min speed, for boats up to 32', single direction, sealed gearbox.

Frequently Asked Questions

What is this windlass's maximum line pull? 386kg (850 lbs).

What boat sizes is this windlass designed for? 5m (16 feet) to 10m (32 feet).

What comes included with this windlass? A deck switch, fastenings, template, and fitting instructions.

Specifications

MPN:
ANCHORMAX
Voltage:
12V
Power:
600W
Max Line Pull:
386kg (850 lbs)
Speed:
24m/min (76 ft/min) at Nominal Load
Weight:
8kg (17.6 lbs)
Max Boat Size:
10m (33')
Direction:
Single Direction (Clockwise)
Includes:
Deck Switch, Fastenings, Template, Instructions
Weight:
16 lbs

Description

Maxwell AnchorMax Windlass has an extremely high power-to-weight ratio, with a compact, fully sealed gearbox driven by a vertically mounted permanent magnet motor. It is designed for boats from 5m (16') to 10m (32'), minimizing intrusion below decks.

Fitting to the boat is simplicity itself, requiring no dismantling of the winch, with marine-grade alloy gear housings and a stainless steel drum. Supplied as a single direction (clockwise) unit complete with deck switch, fastenings, template, and fitting instructions — note it's not recommended for hauling halyards or chain directly. Browse more options in our anchoring & docking category.

Key Features: 12V, 600W, 386kg (850lb) max line pull, 24m/min speed, for boats up to 32', single direction, sealed gearbox.

Frequently Asked Questions

What is this windlass's maximum line pull? 386kg (850 lbs).

What boat sizes is this windlass designed for? 5m (16 feet) to 10m (32 feet).

What comes included with this windlass? A deck switch, fastenings, template, and fitting instructions.

Specifications

MPN:
ANCHORMAX
Voltage:
12V
Power:
600W
Max Line Pull:
386kg (850 lbs)
Speed:
24m/min (76 ft/min) at Nominal Load
Weight:
8kg (17.6 lbs)
Max Boat Size:
10m (33')
Direction:
Single Direction (Clockwise)
Includes:
Deck Switch, Fastenings, Template, Instructions
Weight:
16 lbs

Specifications

MPN, Voltage, Power, Max Line Pull, Speed, Weight, Max Boat Size, Direction, Includes, Weight,

Specifications

MPN:
ANCHORMAX
Voltage:
12V
Power:
600W
Max Line Pull:
386kg (850 lbs)
Speed:
24m/min (76 ft/min) at Nominal Load
Weight:
8kg (17.6 lbs)
Max Boat Size:
10m (33')
Direction:
Single Direction (Clockwise)
Includes:
Deck Switch, Fastenings, Template, Instructions
Weight:
16 lbs
