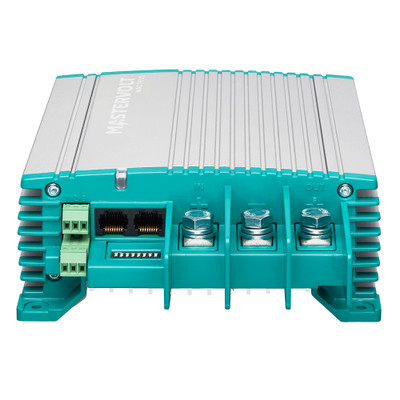

Mastervolt Mac Plus 24/24-30 CZone Charger

The Mastervolt Mac Plus 24/24-30 is a DC-DC charger taking a 24V source and delivering 30A of controlled 24V output to a service bank.

Twenty-four volts in and 24 volts out is not a pointless conversion. The charger regulates a variable or dropping supply into a correct charging profile, which a direct connection cannot do. That matters on long cable runs where voltage drop leaves the service bank permanently undercharged, and on smart alternators that vary output for fuel economy.

A wide DC input range handles Euro 5 and Euro 6 alternator systems specifically, which are the ones that cause the problem. Engine-run detection recognizes when charging power is actually available so the starter battery is not drawn down when the engine is off.

The 3-Step Plus process supports flooded, gel, AGM, spiral, lithium-ion, traction and user-defined chemistries, with temperature compensation and analog voltage sensing at the battery. MasterBus, CZone and NMEA 2000 connect it to an onboard energy system, units can be paralleled for more capacity, and a power-supply mode gives stable DC for sensitive equipment. Explore more DC-DC battery chargers.

• 24V in, 24V out, regulating rather than converting
• Long cable runs leave a bank permanently undercharged
• Wide input handles Euro 5 and Euro 6 alternators
• Engine-run detection protects the starter battery
