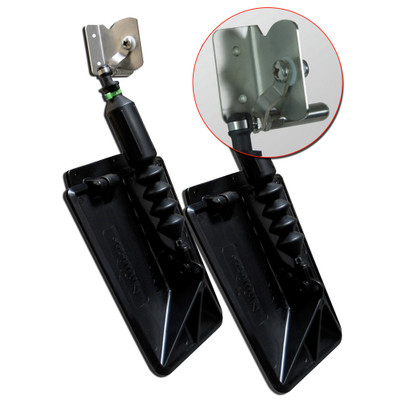

Lectrotab SX ProTroller 9.5 x 10 Trim Tabs - 40-80 HP

(0) Write a Review
UPC 698690954149
Availability In Stock
UPC:
698690954149
MPN:
PT9510-40
Condition:
New
Availability:
In Stock
Shipping:
$5.95 Flat Rate (Per Order)
$195.00
MSRP: $239.00
Fast shipping from Georgia
✓ Ships within 1 Business Day
✓ Trusted by 28,000+ customers
✓ Authorized Dealer
✓ 30 Day Hassle-Free Returns
Condition: New
Shipping: $5.95 Flat Rate (Per Order)

Options

$195.00
MSRP: $239.00
Or
✓Ships within 1 business day
✓Fast shipping from Georgia
✓Quality gear since 2001
✓Secure checkout

Description

The Lectrotab SX ProTroller Series (9.5" x 10") is a fully automatic, self-adjusting trim tab that requires no switches, no hydraulics, and no operator adjustment while underway. It is designed for 14'-17' boats with 40-80 HP to reduce planing speed, improve fuel economy, and smooth the ride without any pilot interface.

A nitrogen gas actuator holds the trim plate down during acceleration, providing lift at the stern until water pressure exceeds the actuator's load rating, at which point the tabs rise to horizontal and drag disappears automatically. A simple lever switches the plates between two jobs: in the down position, they drop to create equal braking on both sides for straight tracking at ultra-low trolling speeds, without restricting the propeller the way other trolling brake systems can. Flip the lever up and you're back to fully automatic trim tab performance, backed by the SX series' rust-free composite construction and tracking ribs for improved high-speed handling. Installation requires only a drill, a 3/16-inch bit, and a Phillips screwdriver, with no through-hull drilling and all mounting hardware, instructions, and templates included. Browse more options in our trim tabs and trim systems category.

Key Features: Fully automatic operation with no switches or hydraulics, nitrogen gas actuator self-adjusts to speed and load, reduces minimum planing speed by up to 33%, improves fuel economy and handling, acts as a boat stabilizer while cruising, no through-hull drilling required, installs in under an hour. Lever switches between trolling brake and trim tab modes, rust-free composite construction, tracking ribs improve high-speed handling, sold as a pair.

Frequently Asked Questions

What boat size and horsepower is this built for? 14'-17' boats with 40-80 HP.

Does this trim tab require any switches or wiring? No, it's fully automatic with no hydraulics or electric switches required.

How long does installation take? Most owners can install it in under an hour with just a drill, a 3/16-inch bit, and a Phillips screwdriver.

Specifications

Manufacturer Part Number:
PT9510-40
Tab Size:
9.5" x 10"
Suitable Boat Length:
14-17 ft
Horsepower Range:
40-80 HP
Function:
Trim Tab and Trolling Brake
Weight:
4.25 lbs
Return Policy:
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Description

The Lectrotab SX ProTroller Series (9.5" x 10") is a fully automatic, self-adjusting trim tab that requires no switches, no hydraulics, and no operator adjustment while underway. It is designed for 14'-17' boats with 40-80 HP to reduce planing speed, improve fuel economy, and smooth the ride without any pilot interface.

A nitrogen gas actuator holds the trim plate down during acceleration, providing lift at the stern until water pressure exceeds the actuator's load rating, at which point the tabs rise to horizontal and drag disappears automatically. A simple lever switches the plates between two jobs: in the down position, they drop to create equal braking on both sides for straight tracking at ultra-low trolling speeds, without restricting the propeller the way other trolling brake systems can. Flip the lever up and you're back to fully automatic trim tab performance, backed by the SX series' rust-free composite construction and tracking ribs for improved high-speed handling. Installation requires only a drill, a 3/16-inch bit, and a Phillips screwdriver, with no through-hull drilling and all mounting hardware, instructions, and templates included. Browse more options in our trim tabs and trim systems category.

Key Features: Fully automatic operation with no switches or hydraulics, nitrogen gas actuator self-adjusts to speed and load, reduces minimum planing speed by up to 33%, improves fuel economy and handling, acts as a boat stabilizer while cruising, no through-hull drilling required, installs in under an hour. Lever switches between trolling brake and trim tab modes, rust-free composite construction, tracking ribs improve high-speed handling, sold as a pair.

Frequently Asked Questions

What boat size and horsepower is this built for? 14'-17' boats with 40-80 HP.

Does this trim tab require any switches or wiring? No, it's fully automatic with no hydraulics or electric switches required.

How long does installation take? Most owners can install it in under an hour with just a drill, a 3/16-inch bit, and a Phillips screwdriver.

Specifications

Manufacturer Part Number:
PT9510-40
Tab Size:
9.5" x 10"
Suitable Boat Length:
14-17 ft
Horsepower Range:
40-80 HP
Function:
Trim Tab and Trolling Brake
Weight:
4.25 lbs
Return Policy:
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications

Manufacturer Part Number, Tab Size, Suitable Boat Length, Horsepower Range, Function, Weight, Return Policy,

Specifications

Manufacturer Part Number:
PT9510-40
Tab Size:
9.5" x 10"
Suitable Boat Length:
14-17 ft
Horsepower Range:
40-80 HP
Function:
Trim Tab and Trolling Brake
Weight:
4.25 lbs
Return Policy:
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
