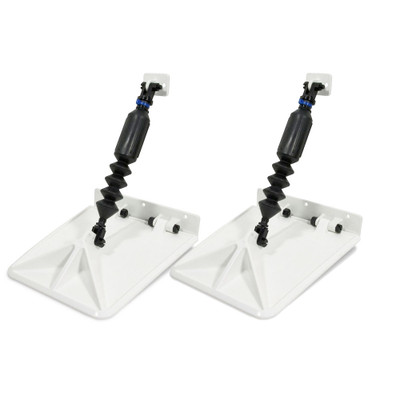

Lectrotab Smart Tabs SX 9.5 x 10 White Tabs - 40-80 HP

The Lectrotab Smart Tabs SX 9.5 x 10 White Tabs - 40-80 HP is a fully automatic trim and stabilization system that reacts to boat speed, water pressure, and loading without requiring electric switches or hydraulic controls. Nitrogen gas actuators hold the plates down during acceleration to create stern lift, then allow them to rise as water pressure increases so tab influence decreases at higher speeds.

That speed-regulated response can reduce bow rise, help the boat reach and maintain plane at lower speeds, and improve stability when passenger or gear placement changes the running attitude. The system can be tuned during installation so the amount of lift and response better match the individual hull and normal operating load.

The SX composite construction eliminates rust concerns and adds molded tracking ribs for high-speed handling. The listed application range is 40-80 HP. Correct installation and initial adjustment remain important because actuator load and plate position determine how strongly the system responds. See what else we carry in trim tabs and trim systems.

• Gas actuators respond to speed and water pressure without requiring constant helm adjustments.
• The plates create stern lift at lower speeds to help the hull transition onto plane more efficiently.
• The mechanical system operates without powered helm controls or fluid lines.
• Installation adjustments let the owner match actuator response to the hull and typical load.
• Molded composite plates are designed for fresh- or saltwater service without rusting.
