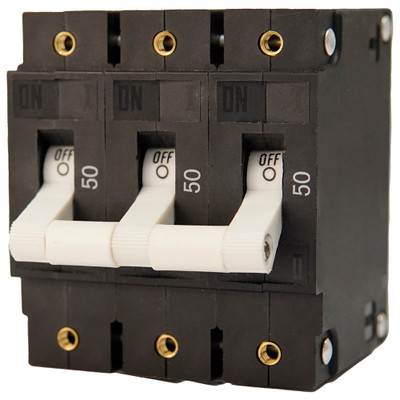

EGIS 50A C Series Panel-Mount Triple-Pole Circuit Breaker

The EGIS C Series 50A Triple-Pole Panel-Mount Circuit Breaker combines magnetic-hydraulic circuit protection with a white toggle-style ON/OFF actuator. It mounts in standard breaker panels that accept A-Series and C-Series devices and includes the mounting screws needed for installation.

The breaker is rated for both AC and DC applications and is designed to support common 12V and 24VDC systems as well as higher-voltage 36V and 48VDC installations. The toggle provides straightforward manual circuit isolation in addition to automatic protection. Electrical and manual switching endurance is rated at 6,000 cycles at full current, and the high interrupt capability is intended for circuits connected to large battery banks with substantial available fault current.

EGIS toggle guards and panel plugs can be paired with compatible A-Series installations to reduce accidental switching and fill unused panel openings.

• 50A triple-pole magnetic-hydraulic circuit protection
• White toggle actuator provides manual ON/OFF switching
• AC and DC rated for a broad range of panel applications
• 6,000 full-current electrical/manual switching cycles
• Mounts in standard A-Series/C-Series panel openings
