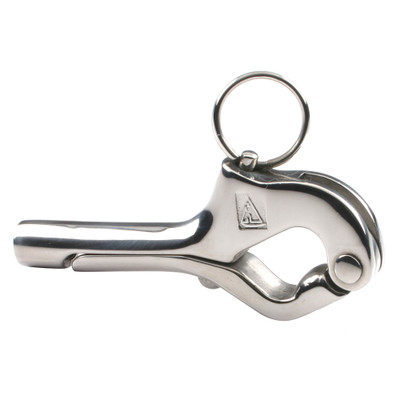

C. Sherman Johnson 5/16-24 RH Snap Gate Hook Body

The C. Sherman Johnson 5/16-24 RH Snap Gate Hook Body is intended for replacing the hook portion of an existing lifeline gate that uses a right-hand threaded connection. It lets the installer retain compatible gate hardware instead of replacing the complete assembly when only the body is worn or damaged. Correct thread identification is essential because this version is specifically made for a right-hand mating fitting. The replacement approach is especially useful on established lifeline systems where the installed spacing already works well.

The hook body measures 3-1/2 in from the end of the threaded section to the inside bearing point of the hook. That overall dimension gives the owner a practical comparison point against the removed fitting. The body should thread smoothly onto the existing hardware without cross-threading or excessive force. After installation, the gate must still close squarely so the latch is not being pulled sideways by the lifeline.

• Right-hand replacement body for a snap-style lifeline gate
• 5/16-24 thread matches compatible existing fittings
• 3-1/2 in reference length from body end to hook bearing point
• Allows targeted repair of an otherwise serviceable gate

Verify the old fitting’s thread size and direction before disassembly, since visually similar gate parts may use opposite threads. The completed gate should be retensioned and checked for full latch engagement before the boat is put back in service. Browse more Sailing Hardware for compatible hardware and related marine rigging components.
