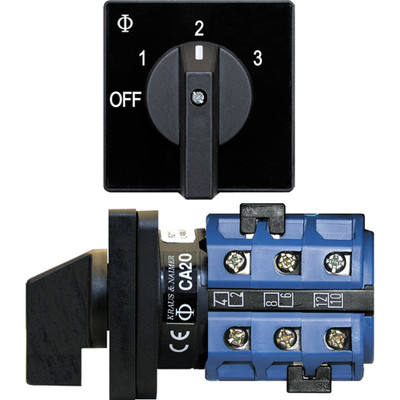

Blue Sea 9010 AC 120V 32A Rotary Selector Switch

The Blue Sea Systems 9010 is a two-pole AC rotary selector switch rated 32A, UL listed to 600V AC.

Thirty-two amps is an unusual rating, sitting between the 30A of a typical North American shore service and the 32A of a European pedestal. That makes it the natural choice for a boat wired to European standards, or one that visits both, where a 30A selector would be marginal on a 32A supply.

This is the same switch fitted inside the 8366 three-source panel, so buying it bare means providing the indication, face and mounting separately. It works for shore power, generator or other 120V or 230V source transfer with a clear mechanical indication of what is selected.

The compact body mounts in panels up to about 0.16 inches thick, which suits a custom panel where space is short. As a selector rather than a breaker, correctly sized over-current and leakage protection must be included elsewhere in the system. Explore more marine electrical switches.

• 32A, matching a European pedestal rather than 30A
• A 30A selector would be marginal on a 32A supply
• The same switch used inside the 8366 panel
• Fits panels up to about 0.16 inches thick
