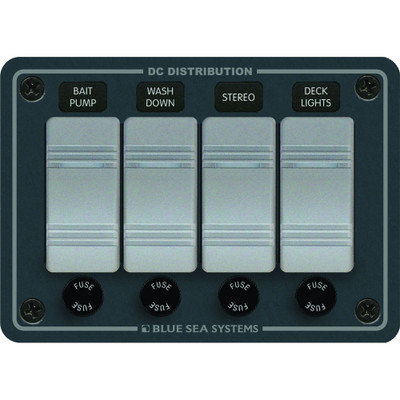

Blue Sea 8262 Waterproof 4 Position Switch Panel

The Blue Sea Systems 8262 is a waterproof 4-position switch panel in slate gray for 12V or 24V systems, with Contura switches and AGC/MDL fuse holders.

Four circuits is the compact end of the waterproof range, against the six-position 8053 and eight-position 8261 in the same family. That suits a small helm or a specific area needing a few local switched circuits rather than a whole panel.

Each circuit uses a Contura On/Off switch with an embedded On-indicator LED and an individual AGC/MDL fuse holder. Fuses seal better than breaker mechanisms in an exposed position, which is the trade for having to carry spares aboard.

A watertight mounting gasket seals the panel opening and the unit arrives completely wired and ready for installation. A two-part polyurethane finish over a Mil-Spec chemical immersion treatment protects against corrosion, with countersunk mounting holes and a black 60-label set included. Explore more marine switch panels.

• Four circuits, the compact end of the waterproof range
• For a small helm or a few local circuits
• Fuses seal better than breakers when exposed
• Watertight gasket, arrives fully wired
