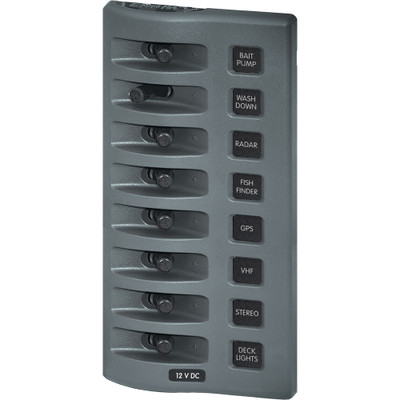

Blue Sea 4309 WeatherDeck 8 Position Switch Panel

The Blue Sea Systems 4309 is a WeatherDeck 8-position switch panel for 12V or 24V circuits, rated IP67 with a 45A cumulative rating.

This is a switch panel with no built-in circuit protection, which is the specification that decides whether it fits an installation. Fuses or breakers must exist elsewhere in the system. Fitting it without them leaves eight circuits unprotected, and that is a wiring fault rather than a shortcut.

Where protection is already centralized, the arrangement makes sense: switching sits at the helm and protection stays in one place where it can be checked. Integrated switch guards reduce accidental operation, which matters on an exposed panel people move past.

The UV-stabilized reinforced-polycarbonate faceplate snaps on and off for access to components while concealing the mounting screws. The front is rated IP67 when installed with the supplied gasket, and the panel mounts in four orientations to suit the helm space and cable routing. Explore more marine switch panels.

• No built-in protection: fuses or breakers go elsewhere
• Without them, eight circuits sit unprotected
• Switch guards reduce accidental operation
• Snap-off faceplate hides the mounting screws
