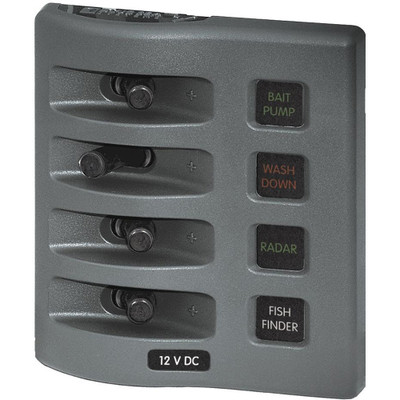

Blue Sea 4304 WeatherDeck 4 Position Fuse Panel

The Blue Sea Systems 4304 is a WeatherDeck 4-position fuse panel in gray, rated IP67, with 15A per circuit and a 60A cumulative rating.

Four positions is the smallest WeatherDeck fuse panel at 4.3 by 3.88 inches, for a small helm or a specific area needing a few protected circuits. The six-position 4306 and eight-position 4308 cover larger installations in the same construction and finish.

Bicolored label LEDs report circuit state directly: red for off, green for on, and unlit where a fuse has gone. Nothing lit anywhere points at the panel supply rather than an individual circuit, which narrows a fault before anything gets opened.

Standard ATO/ATC blade fuses cost little and can be carried as spares in a drawer, which is the trade for a sealed panel front. The front is rated IP67 with its watertight gasket, protected against immersion to one meter for half an hour. Four orientations, four switches, boots, fuses and the 4215 label kit included. Explore more marine electrical panels.

• Four positions, the smallest WeatherDeck fuse panel
• Bicolored LEDs: red off, green on, dark means blown
• Nothing lit means the panel supply, not a circuit
• IP67 to one meter for half an hour
