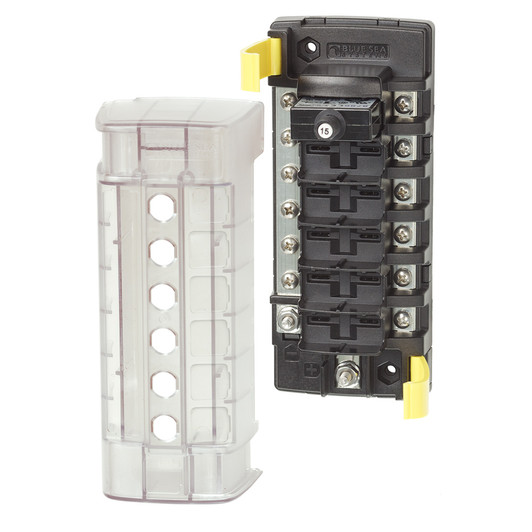

Blue Sea 5052 6-Position CLB Circuit Breaker Block
$74.95
MSRP:
$94.99
Blue Sea 5054 12-Position CLB Circuit Breaker Block
- UPC:
- 632085050542
- MPN:
- 5054
- Condition:
- New
- Availability:
- In Stock
- Shipping:
- $5.95 Flat Rate (Per Order)
$124.95
MSRP:
$161.99
Fast shipping from Georgia
✓
Ships within 1 Business Day
✓
Trusted by 28,000+ customers
✓
Authorized Dealer
✓
30 Day Hassle-Free Returns
Condition:
New
Shipping:
$5.95 Flat Rate (Per Order)
Description

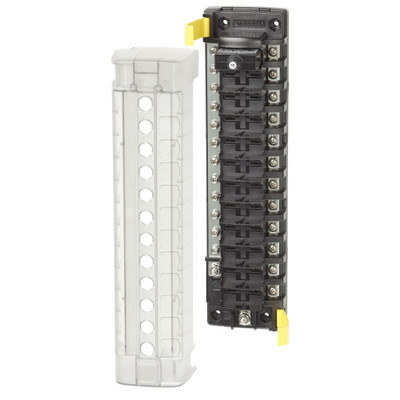

The Blue Sea 5054 ST CLB Circuit Breaker Block gives you 12 quick-connect circuit breaker positions plus a built-in negative bus in one compact block. It is designed for boaters who want a high-density way to add many small DC circuits without running twelve individual breakers and grounds.
Quick-connect clips let circuit breakers snap easily into place for fast installation or replacement, and tin-plated copper buses with screw terminals accept ring terminals directly. A clear insulating cover with square-format label recesses satisfies ABYC/USCG insulation requirements, and breakouts allow wire access from two directions. Browse more options in our panels, switches, and circuit breakers category.
Key Features: 12 circuit positions with negative bus, quick-connect breaker clips, rated 100A per block / 32A per circuit at up to 32V DC, ABYC/USCG-compliant clear cover, sold individually.
Frequently Asked Questions
Does this block include a negative bus? Yes, it has a built-in negative bus for common ground connections.
How are circuit breakers installed in this block? Quick-connect clips let breakers snap easily into place.
What's the maximum amperage per circuit? 32A per circuit, with a 100A rating for the block as a whole.
Specifications
- Manufacturer Part Number:
- 5054
- Circuits:
- 12
- Maximum Amperage:
- 100A per block, 32A per circuit
- Maximum Voltage:
- 32V DC
- Negative Bus:
- Yes
- Weight:
- 1.5 lbs
- Prop 65 Warning:
- WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to P65Warnings.ca.gov.
Description
The Blue Sea 5054 ST CLB Circuit Breaker Block gives you 12 quick-connect circuit breaker positions plus a built-in negative bus in one compact block. It is designed for boaters who want a high-density way to add many small DC circuits without running twelve individual breakers and grounds.
Quick-connect clips let circuit breakers snap easily into place for fast installation or replacement, and tin-plated copper buses with screw terminals accept ring terminals directly. A clear insulating cover with square-format label recesses satisfies ABYC/USCG insulation requirements, and breakouts allow wire access from two directions. Browse more options in our panels, switches, and circuit breakers category.
Key Features: 12 circuit positions with negative bus, quick-connect breaker clips, rated 100A per block / 32A per circuit at up to 32V DC, ABYC/USCG-compliant clear cover, sold individually.
Frequently Asked Questions
Does this block include a negative bus? Yes, it has a built-in negative bus for common ground connections.
How are circuit breakers installed in this block? Quick-connect clips let breakers snap easily into place.
What's the maximum amperage per circuit? 32A per circuit, with a 100A rating for the block as a whole.
Specifications
- Manufacturer Part Number:
- 5054
- Circuits:
- 12
- Maximum Amperage:
- 100A per block, 32A per circuit
- Maximum Voltage:
- 32V DC
- Negative Bus:
- Yes
- Weight:
- 1.5 lbs
- Prop 65 Warning:
- WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications
Manufacturer Part Number, Circuits, Maximum Amperage, Maximum Voltage, Negative Bus, Weight, Prop 65 Warning,
Specifications
- Manufacturer Part Number:
- 5054
- Circuits:
- 12
- Maximum Amperage:
- 100A per block, 32A per circuit
- Maximum Voltage:
- 32V DC
- Negative Bus:
- Yes
- Weight:
- 1.5 lbs
- Prop 65 Warning:
- WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to P65Warnings.ca.gov.
