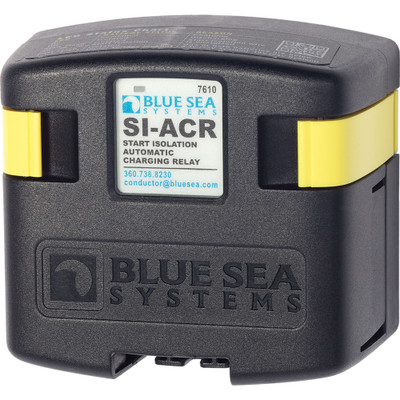

Blue Sea 120-Amp SI-Series Automatic Charging Relay

(0) Write a Review
UPC 632085076108
Availability In Stock
UPC:
632085076108
MPN:
7610
Condition:
New
Availability:
In Stock
Shipping:
$5.95 Flat Rate (Per Order)
$123.95
MSRP: $177.99
Fast shipping from Georgia
✓ Ships within 1 Business Day
✓ Trusted by 28,000+ customers
✓ Authorized Dealer
✓ 30 Day Hassle-Free Returns
Condition: New
Shipping: $5.95 Flat Rate (Per Order)

Options

$123.95
MSRP: $177.99
Or
✓Ships within 1 business day
✓Fast shipping from Georgia
✓Quality gear since 2001
✓Secure checkout

Description

Blue Sea 7610 120 Amp SI-Series Automatic Charging Relay allows temporary isolation of house loads from the engine circuit during engine cranking to protect sensitive electronics. It is designed for boaters who want a relay that automatically combines battery banks during charging and isolates under discharge, activating from any charging source.

With 12/24 volt auto-ranging voltage input and IP67 waterproof rating (30-minute temporary immersion), this relay is ignition protected for safe installation aboard gasoline-powered boats. It activates from alternators, battery chargers, or solar panels, with hermetically sealed, vaporproof contacts, tin-plated copper studs, and a clip-on cover protecting terminal connections. Browse more options in our battery chargers category.

Key Features: 120A continuous rating, 12/24V auto-ranging, IP67 waterproof (30-min immersion), ignition protected, activates from any charging source.

Frequently Asked Questions

What does Start Isolation protect? Sensitive electronics, by temporarily isolating house loads from the engine circuit during cranking.

What charging sources activate this relay? Alternators, battery chargers, or solar panels.

What is this relay's waterproof rating? IP67, rated for 30 minutes of temporary immersion.

Specifications

MPN:
7610
Continuous Rating:
120 Amps
Voltage:
12/24V Auto-Ranging
Waterproof Rating:
IP67, 30-Minute Temporary Immersion
Included With:
ADD A BATTERY Dual Circuit System
Weight:
1.2 lbs
Prop 65 Warning:
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to P65Warnings.ca.gov.

Description

Blue Sea 7610 120 Amp SI-Series Automatic Charging Relay allows temporary isolation of house loads from the engine circuit during engine cranking to protect sensitive electronics. It is designed for boaters who want a relay that automatically combines battery banks during charging and isolates under discharge, activating from any charging source.

With 12/24 volt auto-ranging voltage input and IP67 waterproof rating (30-minute temporary immersion), this relay is ignition protected for safe installation aboard gasoline-powered boats. It activates from alternators, battery chargers, or solar panels, with hermetically sealed, vaporproof contacts, tin-plated copper studs, and a clip-on cover protecting terminal connections. Browse more options in our battery chargers category.

Key Features: 120A continuous rating, 12/24V auto-ranging, IP67 waterproof (30-min immersion), ignition protected, activates from any charging source.

Frequently Asked Questions

What does Start Isolation protect? Sensitive electronics, by temporarily isolating house loads from the engine circuit during cranking.

What charging sources activate this relay? Alternators, battery chargers, or solar panels.

What is this relay's waterproof rating? IP67, rated for 30 minutes of temporary immersion.

Specifications

MPN:
7610
Continuous Rating:
120 Amps
Voltage:
12/24V Auto-Ranging
Waterproof Rating:
IP67, 30-Minute Temporary Immersion
Included With:
ADD A BATTERY Dual Circuit System
Weight:
1.2 lbs
Prop 65 Warning:
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications

MPN, Continuous Rating, Voltage, Waterproof Rating, Included With, Weight, Prop 65 Warning,

Specifications

MPN:
7610
Continuous Rating:
120 Amps
Voltage:
12/24V Auto-Ranging
Waterproof Rating:
IP67, 30-Minute Temporary Immersion
Included With:
ADD A BATTERY Dual Circuit System
Weight:
1.2 lbs
Prop 65 Warning:
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to P65Warnings.ca.gov.
