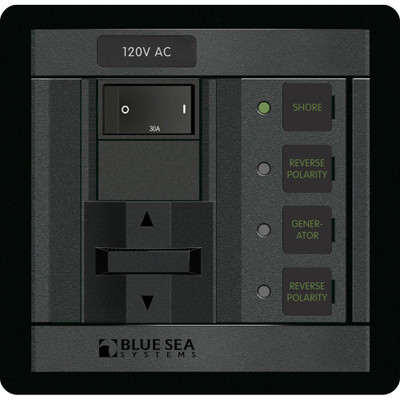

Blue Sea 1208 120V AC 2-Source 30A Selector Panel

The Blue Sea Systems 1208 is a 120V AC source selector handling two 30A inputs, with mechanical lockout slides between the breakers.

The lockout slides make it physically impossible to close both breakers at once, and that is the part worth paying for. Backfeeding a generator onto shore wiring, or the reverse, damages equipment and puts dock workers at risk. A mechanical interlock removes the possibility rather than relying on someone remembering the sequence.

Two 7574 A-Series raised rocker double-pole 30A breakers do the switching, which means each source has real over-current protection rather than only a selector position. That distinguishes it from a rotary selector, which switches sources but protects nothing.

Red reverse polarity and green power available LEDs are installed, so which source is live and whether it is wired correctly can both be seen before anything is thrown. It measures 4.75 by 4.88 by 3.00 inches at 1.71 pounds, with backlit label positions. Explore more marine electrical panels.

• Lockout slides make closing both physically impossible
• Backfeeding endangers dock workers and equipment
• Breakers, not just a selector: each source is protected
• Polarity and power-available LEDs on both sources
