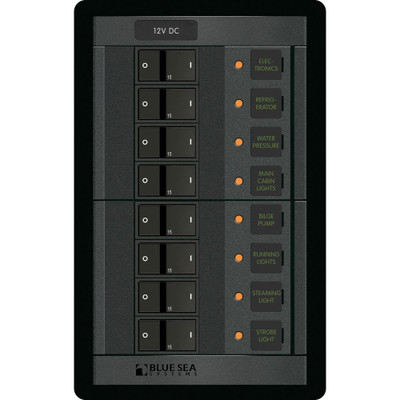

Blue Sea 1200 12V DC 8 Position Vertical Panel

The Blue Sea Systems 1200 is an 8-position 12V DC panel in vertical layout, 7.75 inches tall by 4.88 wide, weighing 2.60 pounds.

This is the vertical version of the same eight-circuit panel, turned ninety degrees for a tall narrow mounting space. It is also lighter and shallower in footprint than the horizontal 1225, which matters where the panel goes on a thin bulkhead rather than a solid console face.

Eight 7403 A-Series flat rocker 15A breakers come installed, with the 4205 basic DC label kit and its 30 black square labels. Maximum amperage is 100A subject to wire and fusing being correct for the application.

It belongs to a family spanning 4 to 32 branch circuits, available with voltmeters, ammeters or digital multimeters depending on how much monitoring the boat needs. Starting with an unmetered panel and adding a metered one later keeps the appearance consistent across both. Explore more marine electrical panels.

• Vertical, for a tall narrow mounting space
• Lighter than the horizontal 1225
• Eight 15A breakers installed
• Metered versions available across the same family
