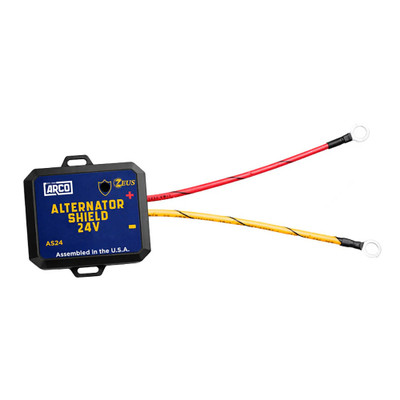

ARCO Zeus 24V Alternator Voltage Spike Shield

The ARCO Zeus Alternator Shield 24V protects high-output alternators on 24V systems against load-dump surges, installing at the alternator terminals.

System voltage has to match, and a 12V shield on a 24V system will not work correctly. The clamping threshold is set for the system it is built for. Too low and it conducts during normal charging; too high and the spike passes through before it acts.

Twenty-four volt systems are common where high-output alternators and large lithium banks are fitted. That combination is exactly the one at risk, since a bigger alternator stores more energy in its field and produces a larger surge when the load disappears.

The shield clamps the surge and diverts it to ground rather than letting it reach the rectifier. An LED indicator confirms shield health, and terminal-mounted installation keeps the protection path short. Explore more alternator parts and accessories.

• Match the shield to system voltage
• Too low it conducts in normal charging, too high it acts late
• A bigger alternator produces a larger surge
• 24V and lithium is the combination most at risk
