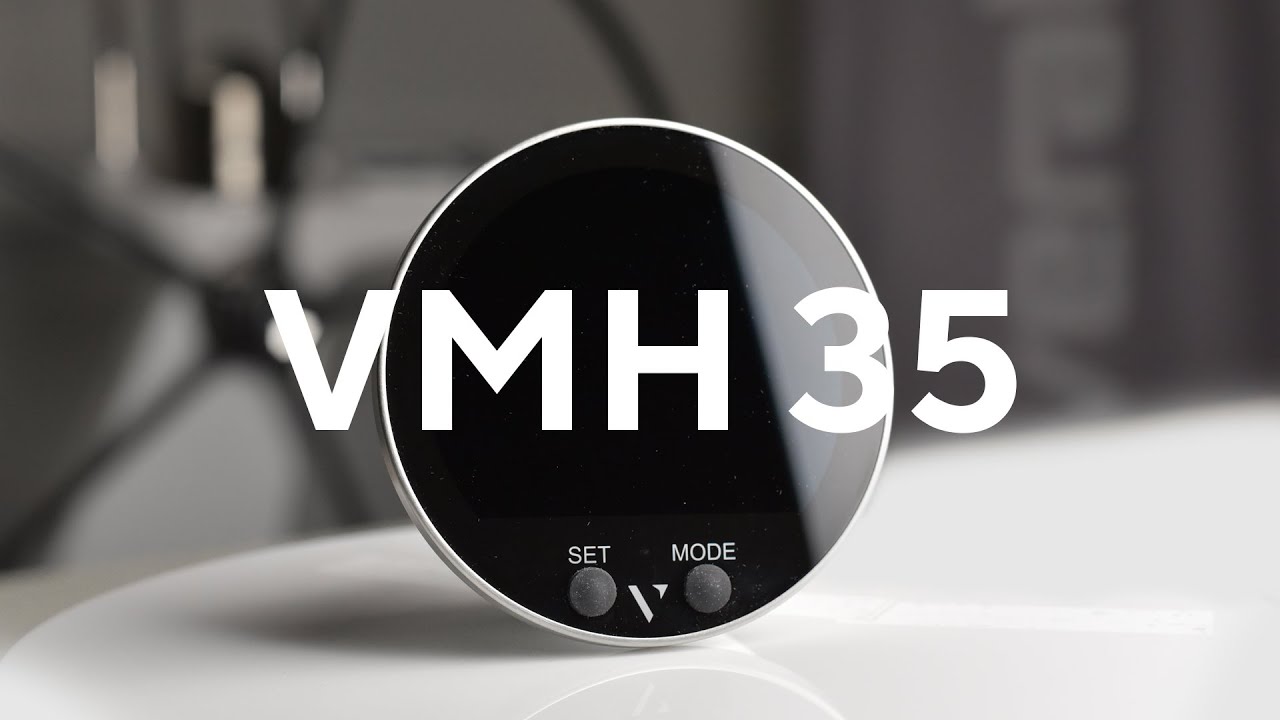

Veratron VMH-35 Multifunction Gauge 85mm

The Veratron VMH-35 is engineered for single inboard or outboard engine applications, combining an embedded NMEA 2000 gateway with an integrated GPS to serve as a genuine standalone navigation and engine monitoring solution in one 85mm gauge.

The embedded NMEA 2000 gateway distributes fuel, trim, and tachometer sensor data to other devices like chartplotters, eliminating the need for a separate external converter, and analog inputs make this gauge a strong fit for refitting older engines that don't speak digital protocols natively. The integrated GNSS receiver folds speed, compass heading, and position directly into the engine data stream, while a dedicated Veratron IBS port supports critical 12V battery health monitoring.

A mineral glass front optically bonded to the sun-readable hybrid display keeps this gauge legible in bright conditions, and the brushed stainless steel bezel suits both classic and modern boat interiors. Because small boat consoles are often fully exposed to the elements, the VMH-35 carries IPX7 waterproofing front and back, and it fits a standard 3-3/8 inch panel cutout for straightforward installation. Browse more marine instruments and gauges at CritPro.

Key Features: diameter: 85mm (3-3/8 inch), bezel: Brushed Stainless Steel, gps: Integrated High-Performance GNSS, protection rating: IPX7, nmea 2000: Yes, Embedded Gateway, ibs port: Yes, Intelligent Battery Sensor, panel cutout: 3-3/8 inch Standard, voltage: 12/24V, includes: Gauge, Mounting Spinlock, Wire Harness, Safety Instructions.

Frequently Asked Questions

What size is this gauge? 85mm (3-3/8 inch).

What is the waterproof rating? IPX7.

What voltage does it run on? 12/24V.
