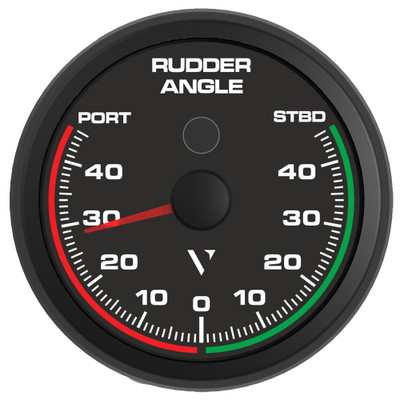

Veratron Professional Rudder Angle Indicator NMEA 0183

The Veratron Professional Rudder Angle Indicator is built for commercial marine applications, with an embedded NMEA 0183 transceiver that makes it directly compatible with most professional autopilots in the field, a real advantage on work boats and commercial vessels where autopilot integration matters.

A large 270-degree dial scale with red illumination keeps the reading accurate and easy to see from a distance or in low light, and the gauge supports both 12V and 24V systems along with analog 3-180 Ohm and 0-5V rudder sensors, covering the sensor types most commonly found aboard. Beyond its own display, this indicator repeats rudder angle data via NMEA 0183 out to additional gauges wired in series, letting one sensor feed multiple stations.

Built to survive harsh commercial use, this indicator carries an extended -40C to 115C operating range and an IP6K7 protection class. An embedded infrared pushbutton allows for user-friendly fine tuning of the predefined calibration without opening the housing, and the gauge, wire harness, and mounting spinlock are all included for installation. Fits the standard 85mm panel cutout size. Browse more marine instruments and gauges at CritPro.

Key Features: diameter: 85mm (3-3/8 inch), protocol: NMEA 0183, dial scale: 270 degree, illumination: Red LED, operating voltage: 8 to 32V, protection class: IP6K7, operating temperature: -40 to 115 C, connector: Molex MX150 12-Pin, includes: Gauge, Wire Harness, Mounting Spinlock, Safety Instructions.

Frequently Asked Questions

What size is this gauge? 85mm (3-3/8 inch).

What voltage does it run on? 8 to 32V.

What comes in the box? Gauge, Wire Harness, Mounting Spinlock, Safety Instructions.
