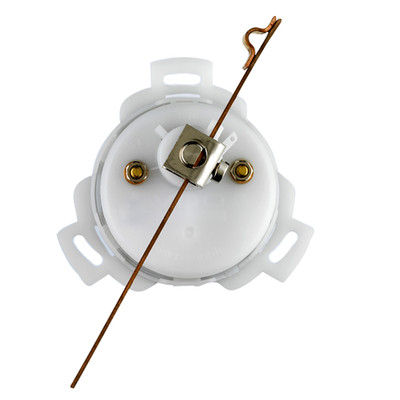

Veratron Dual Station Rudder Angle Sensor

The Veratron Rudder Angle Sensor for Dual Station boats gives accurate rudder position feedback to both helm stations, measuring across a 45° to 0° to 45° range. It uses a straightforward 2-wire analog system with an insulated return sensor signal, compatible with two gauges at once thanks to its 1.5-90 ohm resistance value.

Operating on 6-24V DC, this sensor communicates via a standard analog signal spanning 1.5-90 ohm, making it a reliable option for boats needing consistent rudder angle readings across multiple helm positions. Browse more in our marine electronics category.

Key Features

• Measures ±45° rudder angle
• analog signal (1.5-90 ohm)
• supports 2 gauges
• 2-wire system
• insulated return sensor signal
• dual station compatible
• Model: A2C1102960001
• Signal: Analog, 1.5-90 Ohm
• Gauges Supported: 2

Additional Details: Weight: 0.6 lb.

Frequently Asked Questions

Can this sensor drive two gauges at once? Yes, with a resistance value of 1.5-90 ohm, it's rated to support 2 gauges for dual station setups.

What voltage does this sensor require? It operates on 6-24V DC.

Is this sensor returnable if I have an issue? No, this product cannot be returned to the original point of purchase; please contact Veratron directly with any issues or concerns.
